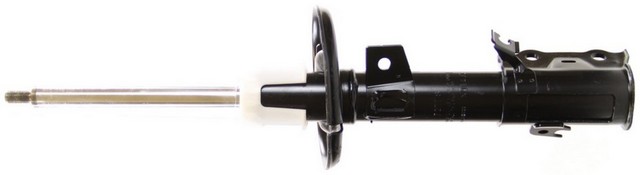

Monroe Shocks & Struts 72778 front right suspension strut for the 2016-2020 Ford Figo and other vehicles controls spring movement at the front right wheel. It is a gas-charged unit with a strut rod that extends automatically.
- Monroe OESpectrum line, designed with the right technology for each application
- Twin Technology Active Control System isolates impact-related noise, vibration and harshness
- Rod displaced valving tuned to each vehicle adjusts to road extremes (on most applications)
- PTFE-banded piston gives consistent sealing between the piston and pressure tube
- Nitrogen gas charge reduces aeration to help keep the tire in contact with the road (on most applications)
- Chrome-plated piston, bronze reinforced rod guide bearing and single lip seal (where applicable)
Quick facts
- Part: Monroe Shocks & Struts 72778 suspension strut
- Fits: 2016-2020 Ford Figo and other vehicles
- Position: Front right
- Condition: New
A worn strut can show up as a bouncy ride, a knock over bumps, extra nose dive under braking or oil on the strut body. These signs alone do not prove the strut is the problem, since a worn sway bar link can make a similar knock.
Fits
This is a suspension strut for the 2014-2019 Ford Fiesta as well as the 2016-2020 Ford Figo. A car has one strut at each front wheel; this listing is the front right one, the front left is ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Body diameter: 45 mm (1.772 in)
- Body length: 10.52 in
- Compressed length: 279.9 mm (11.02 in)
- Extended length: 449.1 mm (17.68 in)
- Travel length: 6.66 in
Build and materials
- Type: gas-charged strut, passive suspension
- Internal rebound bumper: yes
- Adjustable compression, rebound and ride height: no
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: Mexico
In the box
One front right suspension strut with mounting hardware. The strut mount, coil spring and dust shield are not included.
Interchange: MP8686 · ST3314431R · 333356R · 337226R · D2BZ18124B · 3330175 · 3348041 · 3348056 · NS72778 · PM6000459
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
MP8686, ST3314431R, 333356R, 337226R, D2BZ18124B, 3330175, 3348041, 3348056, 72778, NS72778, PM6000459
Frequently Asked Questions
Is this Monroe 72778 strut right for a 2016-2020 Ford Figo?
Yes. Monroe Shocks & Struts 72778 is a front right suspension strut that fits the 2016-2020 Ford Figo and the 2014-2019 Ford Fiesta.
Does the Monroe 72778 strut come with the coil spring or strut mount?
No. Monroe Shocks & Struts 72778 comes with mounting hardware, but the strut mount, coil spring and dust shield are not included.
Is the Monroe OESpectrum front right strut gas charged?
Yes. This strut is a gas-charged unit, and its strut rod extends automatically. The nitrogen gas charge applies on most applications.
Does Monroe 72778 replace the number D2BZ18124B?
Yes. D2BZ18124B is one of the interchange numbers this strut replaces. The other numbers are on the Interchange line.
What warranty comes with the Monroe OESpectrum 72778 strut?
Monroe covers this strut with its Limited Lifetime Warranty and its Feel the Difference Guarantee.
