Rear Coil Spring Set for 2011-2015 Chevrolet Cruze & More - MOOG 81691

$143.99
MOOG Chassis Products Coil Spring Set 81691
MOOG Chassis Products Coil Spring Set 81691 - view 2
MOOG Chassis Products Coil Spring Set 81691
MOOG Chassis Products Coil Spring Set 81691 - view 2

Vehicles this part fits
    Part number: 81691
    UPC: 080066700021
    Condition: New
    Weight: 12.20 LBS
    Item Package Quantity: 1
    $143.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    MOOG Chassis Products Coil Spring Set P/N:81691
    MOOG Chassis Products Coil Spring Set P/N:81691
    $143.99
    $143.99

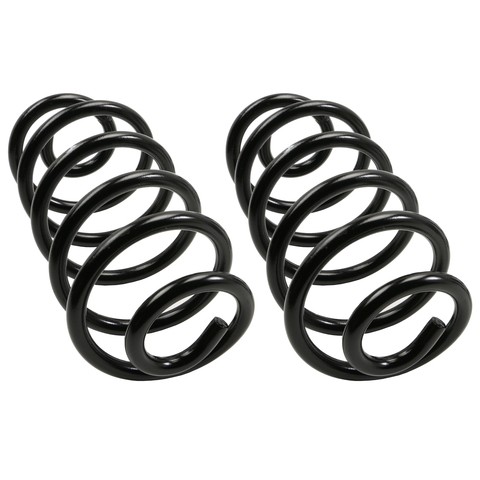

    MOOG Chassis Products 81691 rear coil spring set for the 2011-2015 Chevrolet Cruze and other vehicles supports the vehicle's weight at the rear suspension.

    • Design enhancements that extend product life
    • Each spring is 100% load tested
    • Designed to lower stresses for longer service life
    • Built to simplify installation and replacement

    Quick facts

    • Part: MOOG Chassis Products 81691 coil spring set
    • Fits: 2011-2015 Chevrolet Cruze and other vehicles
    • Position: Rear
    • Condition: New

    Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment. If a sagging spring is behind the problem, this set replaces it. Before buying, work out the cause: with the engine off and the car parked on level ground, look over the springs for cracks or broken coils and compare ride height from side to side.

    Fits

    It is a direct-fit replacement for the 2011-2015 Chevrolet Cruze, the 2012-2017 Buick Verano and the 2016 Chevrolet Cruze Limited, and the quantity is one for each of them.

    Specifications

    Fit and size

    • Position: rear
    • Quantity per vehicle: 1
    • Wire diameter: 13.5 mm (0.531 in)
    • Rear spring relaxed length: 280.4 mm (11.040 in)
    • Rear spring compressed length: 203.2 mm (8.000 in)

    Build and materials

    • Type: coil spring set
    • Condition: New
    • Country of origin: United States

    Interchange: 13360462 · 13360840 · 13360841 · 13366736 · SMS250181 · 2773847 · 22121

    This part cross-references / interchanges with the following part numbers:

    13360462, 13360840, 13360841, 13366736, SMS250181, 2773847, 22121

    Frequently Asked Questions

    Does the MOOG Chassis Products 81691 rear coil spring set fit the 2012-2017 Buick Verano?

    Yes. MOOG Chassis Products 81691 is listed for the 2012-2017 Buick Verano as a rear coil spring set, with a quantity of one.

    What wire diameter does this rear coil spring set have?

    The wire diameter is 13.5 mm (0.531 in). The rear spring measures 280.4 mm (11.040 in) relaxed and 203.2 mm (8.000 in) compressed.

    Can a sagging rear coil spring wear out my tires?

    Yes, it can. Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment, and one side sitting lower than the other can be another sign.

    Is the MOOG 81691 coil spring set load tested?

    Yes. MOOG Chassis Products 81691 is 100% load tested, and the spring is designed to lower stresses for longer service life.

    Is 13360462 an interchange number for this rear coil spring set?

    Yes. 13360462 is on the interchange list for this spring set, along with 13360840, 13360841 and 13366736.
