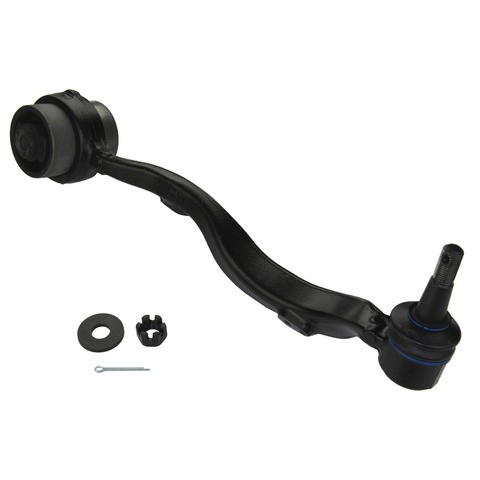

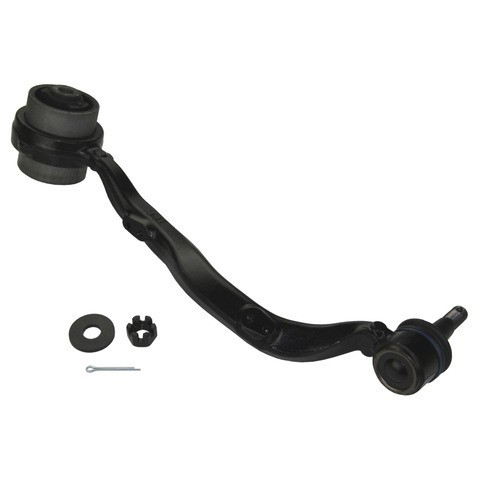

MOOG Chassis Products RK622207 front right lower control arm with ball joint for the 2007-2012 Lexus LS460 connects the front right wheel to the chassis and carries the ball joint. Sold as a control arm and ball joint assembly, it is one of the 2007-2012 Lexus LS460 control arms, with the ball joint and bushings included.
- E-coated control arm and coated studs to inhibit premature deterioration
- Precision tolerances for easier installation and steering alignment
- Optimized rubber bushings for quiet operation and resistance to wear, salt, road grime and oils
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Ball stud shape that ensures fatigue life
- Heat-treated construction to inhibit premature failure
Quick facts
- Part: MOOG Chassis Products RK622207 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2012 Lexus LS460
- Position: Front right lower forward
- Condition: New
A worn arm can show up as a clunk over bumps, uneven front tire wear or a front end that wanders, but worn springs or other suspension parts can produce similar symptoms. Before replacing anything, park the car with the engine off and look at whatever bushing rubber and ball joint boot you can see without lifting it for cracks, splits or grease leakage; a shop can check ball joint play. Front arms are normally replaced as a pair, and this listing is one arm for the front right, so the front left is ordered separately. One goes on each side of the front axle.
Fits
This is a direct-fit replacement for the front right lower forward position on the 2007-2012 Lexus LS460.
Specifications
Fit and size
- Position: Front right lower forward
- Quantity per application: 1
- Control arm maximum length: 15.2 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
Build and materials
- Bushing material: Rubber
- Pre-greased: Yes
- Adjustable: No
- Condition: New
- Country of origin: Turkey
In the box
One control arm with ball joint and bushings, plus mounting hardware. A grease fitting is not included.
Interchange: 524-026
45D10415 · TC6049 · CB64224PR · CA4907 · 6CB86276 · 4862059015 · CB64224 · CMS861074 · MS861074 · 2607105 · 5072454 · JTC2981
This part cross-references / interchanges with the following part numbers:
45D10415, TC6049, 524-026, CB64224PR, CA4907, 6CB86276, 4862059015, CB64224, CMS861074, MS861074, 2607105, 5072454, JTC2981
Frequently Asked Questions
Which side is this 2007-2012 Lexus LS460 lower control arm for?
It is the front right lower forward arm. The front left is a separate part, so order that side on its own.
Is this a 2007 Lexus LS460 lower control arm, and does it cover later years?
Yes. MOOG Chassis Products RK622207 fits the 2007-2012 Lexus LS460 at the front right lower forward position.
Are the bushings and ball joint included with the MOOG RK622207 control arm?
Yes. MOOG Chassis Products RK622207 comes with the ball joint and bushings, and mounting hardware is included. A grease fitting is not included.
Do I need to grease the ball joint on this MOOG control arm?
No. The ball joint is pre-greased and has a sealed socket made for maintenance-free operation, and no grease fitting is included.
How long is the MOOG RK622207 control arm, and how does its ball joint mount?
Its maximum length is 15.2 in. The ball joint is a press-in type with a threaded stud.
