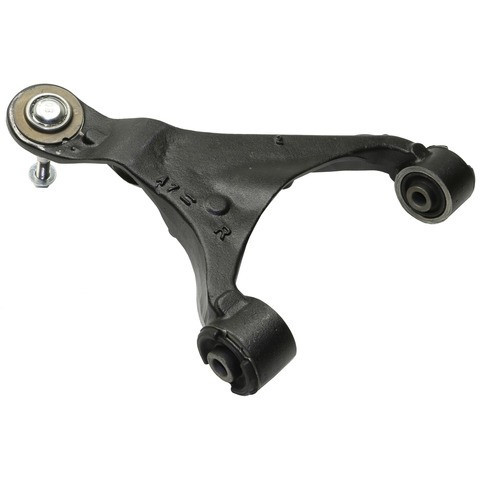

MOOG Chassis Products RK622880 front right upper control arm with ball joint for the 2006-2009 Land Rover Range Rover Sport links the steering knuckle to the vehicle and pivots on its ball joint as the wheel moves. Also called a control arm and ball joint assembly, it is sold as one unit.
- Sealed ball joint socket for maintenance-free operation
- Rubber bushings optimized for quiet operation and resistance to wear, salt, road grime and oils
- Heat-treated control arm to inhibit premature failure
- Coated studs and e-coated control arm to inhibit premature deterioration
- Ball stud shape designed for fatigue life
Quick facts
- Part: MOOG Chassis Products RK622880 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2006-2009 Land Rover Range Rover Sport
- Position: Front right upper
- Material: Forged steel control arm, rubber bushings
- Condition: New
Clunks over bumps, a loose feel in the steering or uneven front tire wear can mean the bushings or ball joint are worn. These signs alone do not prove this arm is the problem; a worn tie rod end is another common cause.
Fits
This arm fits the 2006-2009 Land Rover Range Rover Sport, which takes one on this side. The listing is the front right upper arm only; the front left is a separate part ordered on its own, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front right upper
- Quantity per vehicle: 1
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Forged steel
- Bushing material: Rubber
- Bushings: Included
- Ball joint: Included
- Condition: New
- Country of origin: Turkey
In the box
One control arm with its ball joint and rubber bushings. A grease fitting is not included.
Installation notes
- The ball joint comes pre-installed in the arm.
- Precision tolerances are designed for easy installation and steering alignment.
Interchange: 524-070
1027836 · TC3027 · CB35018PR · CA10471 · LR051617 · CB35018
This part cross-references / interchanges with the following part numbers:
1027836, TC3027, 524-070, CB35018PR, CA10471, LR051617, CB35018
Frequently Asked Questions
Is this a 2006-2009 Land Rover Range Rover Sport control arm for the left or right side?
MOOG Chassis Products RK622880 is the front right upper arm for the 2006-2009 Land Rover Range Rover Sport. The front left side is a separate part.
Does the MOOG RK622880 control arm come with the ball joint and bushings?
Yes. MOOG RK622880 includes the ball joint and rubber bushings, already installed in the arm. A grease fitting is not included.
What kind of ball joint mount and stud does this control arm have?
The ball joint on this control arm is a press-in type with a threaded stud. The arm itself is forged steel and is not adjustable.
How can I tell if this upper control arm is worn?
With the engine off, look for cracked or torn bushing rubber, cracks or heavy rust. Clunks over bumps, loose steering or uneven front tire wear can also mean wear; a shop can check ball joint play.
Does the ball joint on this control arm need maintenance?
No. The ball joint has a sealed socket designed for maintenance-free operation, and no grease fitting is included.
