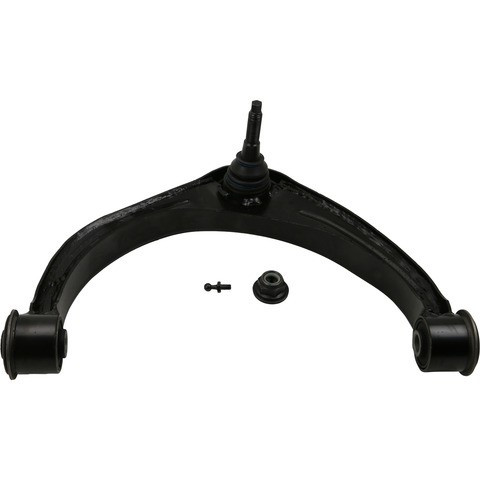

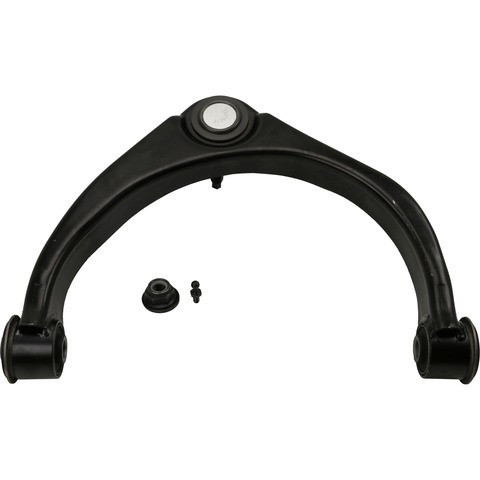

MOOG RK643074 front left upper control arm with ball joint for the 2011-2018 Ram 1500 and other vehicles links the steering knuckle to the frame. It holds the wheel assembly in position while letting the suspension move up and down.
- Rubber bushings optimized for quiet operation and resistance to wear, salt, road grime and oils
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Ball stud shape built for fatigue life, with extra swing when the suspension needs it
- Heat treated for structural strength to inhibit premature failure
- Coated studs and an e-coated arm for added corrosion protection
Quick facts
- Part: MOOG RK643074 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2018 Ram 1500 and other vehicles
- Position: Front left upper
- Material: Forged steel
- Condition: New
A clunk over bumps, loose or wandering steering, or uneven front tire wear can mean a control arm and ball joint assembly is worn, though a loose tie rod end or a worn wheel bearing can produce similar signs. Upper arms are normally replaced as a left and right pair, so plan on a second arm for the other side.
Fits
It is a control arm for the 2011-2018 Ram 1500, the 2009-2010 Dodge Ram 1500 and the 2019-2024 Ram 1500 Classic.
Specifications
Fit and size
- Position: front left upper
- Quantity per vehicle: 1 for this side
- Maximum arm length: 11.377 in
- Adjustable: No
Build and materials
- Construction: control arm with ball joint and bushings included
- Control arm material: forged steel
- Bushing material: rubber
- Ball joint stud type: threaded
- Condition: new
- Country of origin: China
In the box
One front left upper control arm with its bushings and ball joint. This listing holds one arm, the front left takes one, and the front right is ordered separately.
Installation notes
- Precision tolerances are built in for easy installation and steering alignment.
Interchange: 810-18015B · 810-324596B · 522-467
62267061 · 4877203AA · 55398403AA · 68163961AA · 68163961AB · 68163961AC · 68163961AD · 68227901AB · 68227901AC · CB81227PR · CA8758 · K620634 · CB81227 · 8CB25174 · CMS251057 · 2606787 · JTC2622
This part cross-references / interchanges with the following part numbers:
810-18015B, 810-324596B, 62267061, 4877203AA, 55398403AA, 68163961AA, 68163961AB, 68163961AC, 68163961AD, 68227901AB, 68227901AC, 522-467, CB81227PR, CA8758, K620634, CB81227, 8CB25174, CMS251057, 2606787, JTC2622
Frequently Asked Questions
Is this an upper control arm for the 2011-2018 Ram 1500?
Yes, MOOG RK643074 is the front left upper control arm with ball joint for the 2011-2018 Ram 1500; the right side takes a separate arm.
Is a MOOG control arm bushing included with this arm?
Yes, MOOG RK643074 includes rubber bushings along with the pre-installed ball joint.
What is this MOOG control arm made of?
The arm is forged steel and the bushings are rubber. The ball joint has a threaded stud, and the studs are coated.
Does this MOOG upper control arm go on the left or right?
This one is for the front left. The front left takes one arm, and the front right needs its own.
Is 68163961AA the same part as MOOG RK643074?
Yes, 68163961AA is one of the numbers MOOG RK643074 replaces, as shown on the Interchange line.
