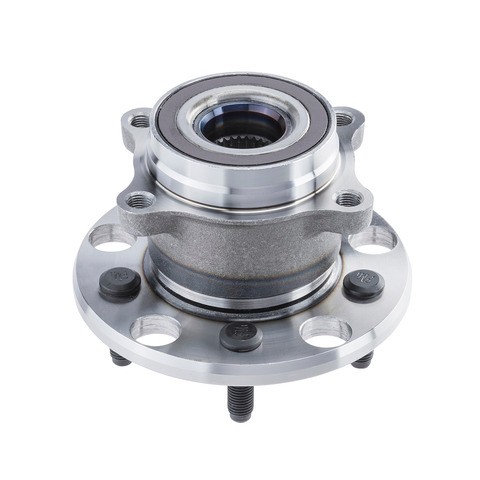

MOOG 512546 rear wheel bearing and hub assembly for the 2016-2022 Lexus RC300 and other vehicles holds the rear wheel on the axle and lets it turn on its bearing. Bearing and hub come as one assembly.
- Design changes aimed at longer product life and simpler installation and replacement
- Bearing raceways and rolling elements matched through tightly controlled manufacturing to minimize noise and vibration
- Application-specific design
- Performance proven and quality tested
Quick facts
- Part: MOOG 512546 wheel bearing and hub assembly
- Fits: 2016-2022 Lexus RC300 and other vehicles
- Position: Rear
- Condition: New
A worn wheel bearing can show up as a humming or growling noise that changes with speed, play at the wheel or vibration. Before you replace this assembly, rule out tires, brakes and suspension parts, which can produce similar noise and vibration.
Fits
It fits the 2016-2022 Lexus RC300, the 2015-2022 Lexus RC350 and the 2013-2020 Lexus GS350, and takes two per vehicle, one for each rear wheel. This listing is one hub assembly, and the other side of that axle is normally done at the same time. If your Lexus is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 114.3 mm (4.5 in), 4 flange bolt holes
- Brake pilot diameter: 62 mm
- Flange diameter: 154.2 mm
- Flange offset: 67.5 mm
- Flange shape: square
Build and materials
- Anti-lock brake sensor: not included
- Condition: New
- Country of origin: Taiwan
Interchange: 42410-30040 · 42410-30041
WE61874 · G512337 · H512337 · MB86317 · BR930998 · HA590514
This part cross-references / interchanges with the following part numbers:
WE61874, G512337, H512337, MB86317, BR930998, HA590514, 4241030040, 42410-30040, 42410-30041, 4241030041
Frequently Asked Questions
Is the MOOG 512546 right for the 2016-2022 Lexus RC300?
Yes. MOOG 512546 is a rear wheel bearing and hub assembly for the 2016-2022 Lexus RC300, and the car takes two.
Does this rear wheel bearing and hub assembly come with the anti-lock brake sensor?
No. The anti-lock brake sensor is not included with this assembly, so it is a separate part.
What is the bolt pattern on the MOOG 512546 hub assembly?
MOOG 512546 has 4 flange bolt holes on a 114.3 mm (4.5 in) bolt circle. The brake pilot diameter is 62 mm and the flange diameter is 154.2 mm.
How can I tell if a rear wheel bearing is going bad?
A humming or growling noise that changes with speed, play at the wheel or vibration can mean a worn bearing. A shop can confirm it.
Does the MOOG 512546 replace Lexus number 42410-30040?
Yes. 42410-30040 is one of the numbers this MOOG 512546 replaces, along with 42410-30041.
