Front Wheel Bearing and Hub Assembly for 2017-2020 Toyota 86 & More - MOOG 513352

$293.99
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 513352
MOOG Hub Assemblies Wheel Bearing and Hub Assembly 513352

Vehicles this part fits
    Part number: 513352
    UPC: 019826214256
    Condition: New
    Weight: 6.59 LBS
    Item Package Quantity: 1
    $293.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

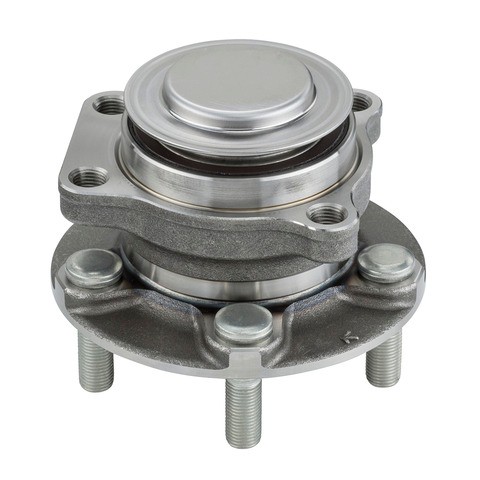

    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:513352
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:513352
    $293.99
    $293.99

    MOOG 513352 front wheel bearing and hub assembly for the 2017-2020 Toyota 86 and other vehicles lets the wheel spin smoothly on its mount. The bearing and hub come together as one assembly.

    • Roll form design for consistent preload
    • Bearing raceways and rolling elements are matched through tightly controlled manufacturing to reduce noise and vibration
    • Design changes aimed at longer product life and simpler installation and replacement
    • Performance proven and quality tested

    Quick facts

    • Part: MOOG 513352 wheel bearing and hub assembly
    • Fits: 2017-2020 Toyota 86 and other vehicles
    • Position: Front
    • Condition: New

    A humming noise that grows with speed, or vibration while driving, can mean this bearing is worn, though a worn tire or a brake rotor problem can produce similar noise or vibration, so find the cause before you replace it.

    Fits

    It also fits the 2013-2020 Subaru BRZ and the 2013-2016 Scion FR-S. This listing is one wheel bearing and hub assembly; the other side of the front axle is normally done at the same time, and the 2017-2020 Toyota 86 takes two.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Bolt circle diameter: 100 mm (3.94 in), 4 flange bolt holes
    • Brake pilot diameter: 58 mm
    • Flange diameter: 124 mm
    • Flange offset: 49 mm
    • Flange shape: trapezoid

    Build and materials

    • Condition: new
    • ABS sensor: not included
    • Country of origin: China

    Interchange: 91-556416
    WE60711 · BR930880 · 28373CA000 · SU00300782 · HA590518

    This part cross-references / interchanges with the following part numbers:

    WE60711, 91-556416, BR930880, 28373CA000, SU00300782, HA590518

    Frequently Asked Questions

    Is MOOG 513352 a wheel bearing for the 2013-2020 Subaru BRZ?

    Yes. MOOG 513352 is a front wheel bearing and hub assembly that fits the 2013-2020 Subaru BRZ.

    Does MOOG 513352 work as a wheel bearing for the 2017-2020 Toyota 86?

    Yes. MOOG 513352 fits the 2017-2020 Toyota 86 as a front assembly, and the car takes two, one per front wheel.

    What bolt pattern does the MOOG 513352 wheel bearing and hub assembly have?

    The bolt circle is 100 mm (3.94 in) with 4 flange bolt holes, and the brake pilot diameter is 58 mm.

    Does this front wheel bearing and hub assembly come with the ABS sensor?

    No. The anti-lock brake sensor is not included with this wheel bearing and hub assembly.

    How can I tell a front wheel bearing is wearing out?

    A humming or growling noise that changes with speed, or vibration while driving, can be a sign of a worn bearing. A shop can confirm it.
