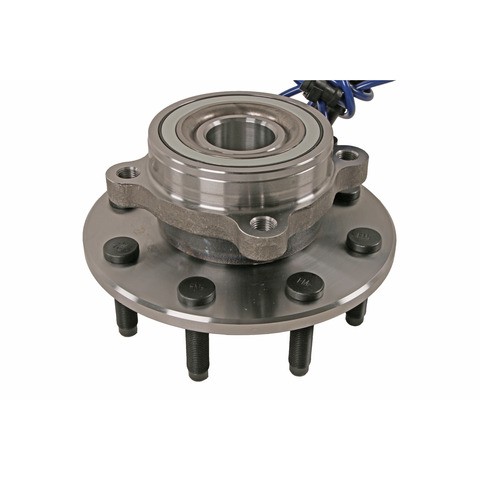

MOOG 515061 front wheel bearing and hub assembly for the 2003-2005 Dodge Ram 2500 and other vehicles holds the wheel on the axle and lets it spin freely.
- Application-specific raceway design that reduces stress, rotation and heat on components
- Engineered and designed for fast installation
- Coated wheel studs that resist corrosion and rust for easier removal and proper torqueing
- Comprehensive testing by MOOG engineers throughout design and development
- Abrasion-resistant ABS cord that resists damage, contamination and vibration that may lead to premature wear
Quick facts
- Part: MOOG 515061 wheel bearing and hub assembly
- Fits: the 2003-2005 Dodge Ram 2500 and other vehicles
- Position: Front
A humming or growling noise that changes with speed, looseness at the wheel or an ABS warning light can mean a worn bearing, though tires, brakes or an ABS sensor problem can cause similar signs. When the wheel is off for a brake or tire service, look at the hub for grease leakage or a damaged ABS cord before you decide.
Fits
This wheel bearing and hub assembly is a direct-fit replacement for the 2003-2005 Dodge Ram 2500 and the 2003-2005 Dodge Ram 3500. The 2003-2005 Dodge Ram 2500 takes two. This listing is one front unit; the other wheel on that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 165.1 mm (6.5 in), 4 flange bolt holes
- Brake pilot diameter: 122.3 mm
- Flange diameter: 205.2 mm
- Flange offset: 54.6 mm
- Flange shape: Square
Build and materials
- ABS sensor: included
- Wheel studs: coated
- Country of origin: Thailand
Interchange: 94-232009 · 402.6701 · 402.67010E · 799-0168 · BTD-5106 · BTF-1086-C
WE60976 · BR930502 · 5103507AA · 5103507AB · 930636 · NT515061 · DL515061 · 102005 · G515061 · H515061 · 715061 · HA590032
This part cross-references / interchanges with the following part numbers:
WE60976, 94-232009, 402.6701, 402.67010E, BR930502, 5103507AA, 5103507AB, 930636, NT515061, DL515061, 102005, 799-0168, G515061, H515061, 715061, BTD-5106, BTF-1086-C, HA590032
Frequently Asked Questions
Is this the wheel bearing for the 2003-2005 Dodge Ram 2500?
Yes. MOOG 515061 is a front wheel bearing and hub assembly for the 2003-2005 Dodge Ram 2500 and other vehicles, and it goes on the front axle.
Does MOOG 515061 work as a wheel bearing for the 2003-2005 Dodge Ram 3500?
Yes. MOOG 515061 is listed for the 2003-2005 Dodge Ram 3500 as a front wheel bearing and hub assembly, and that truck takes two.
Does this wheel bearing and hub assembly come with the ABS sensor?
Yes. The anti-lock brake sensor is included, and its abrasion-resistant ABS cord resists damage, contamination and vibration.
What is the bolt circle on this wheel bearing and hub assembly?
The bolt circle diameter is 165.1 mm (6.5 in) with 4 flange bolt holes. The brake pilot diameter is 122.3 mm and the flange diameter is 205.2 mm.
Does MOOG 515061 replace the 5103507AA number?
Yes. 5103507AA is on the interchange list for MOOG 515061, the front wheel bearing and hub assembly.
