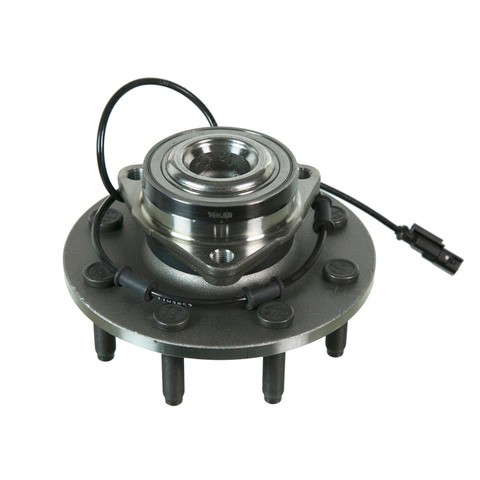

MOOG 515114 front wheel bearing and hub assembly for the 2006-2008 Dodge Ram 1500 and other vehicles supports the wheel and lets it turn on the axle. The anti-lock brake sensor is included with the assembly.
- Roll-form design sets a consistent, optimal preload at the factory to minimize excessive noise and wear
- Application-specific advanced raceway design reduces stress, rotation and heat on components
- Quad lip seal design inhibits damage by keeping moisture and other contaminants out
- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- Tested by MOOG engineers throughout design and development
- Designed for fast installation
Quick facts
- Part: MOOG 515114 wheel bearing and hub assembly
- Fits: 2006-2008 Dodge Ram 1500 and other vehicles
- Position: Front
- Condition: New
A humming or growling noise that changes with speed, or a loose feel at the wheel, can point to a worn wheel bearing. Before you replace the assembly, rule out uneven tire wear and a brake problem, since either can make a similar noise.
Fits
It fits as a front wheel bearing and hub assembly on the 2006-2008 Dodge Ram 1500, the 2006-2008 Dodge Ram 2500 and the 2006-2008 Dodge Ram 3500. This listing is one assembly, and the other wheel on that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 164.7 mm (6.483 in)
- Brake pilot diameter: 122.2 mm
- Flange diameter: 205.2 mm
- Flange offset: 54.5 mm
- Flange bolt holes: 3
- Flange shape: modified
Build and materials
- Type: wheel bearing and hub assembly
- Anti-lock brake sensor: included
- Wheel studs: coated
- Condition: New
- Country of origin: Thailand
In the box
One front wheel bearing and hub assembly with its anti-lock brake sensor. This listing holds one assembly, and the front axle takes two.
Interchange: BR930696 · 52010206AC · 52010206AD · H515114 · BR930501 · SP550104
This part cross-references / interchanges with the following part numbers:
BR930696, 52010206AC, 52010206AD, H515114, BR930501, SP550104
Frequently Asked Questions
Is MOOG 515114 the right wheel bearing for the 2006-2008 Dodge Ram 1500?
Yes. MOOG 515114 is a front wheel bearing and hub assembly that fits the 2006-2008 Dodge Ram 1500.
Is MOOG 515114 also a wheel bearing for the 2006-2008 Dodge Ram 2500?
Yes. MOOG 515114 fits the 2006-2008 Dodge Ram 2500 on the front axle, and it also fits the 2006-2008 Dodge Ram 3500.
Does this wheel bearing and hub assembly come with the ABS sensor?
Yes. The anti-lock brake sensor is included with this front wheel bearing and hub assembly. The listing is one assembly, and the front axle takes two.
What is the bolt circle on the MOOG 515114 wheel bearing and hub assembly?
MOOG 515114 has a bolt circle diameter of 164.7 mm (6.483 in) with 3 flange bolt holes. Its brake pilot diameter is 122.2 mm.
How does this wheel bearing and hub assembly keep water and dirt out?
Its quad lip seal design keeps moisture and other contaminants out. The coated wheel studs also resist corrosion and rust, which makes removal easier.
