Spark Plug for 2009-2013 Suzuki Grand Vitara & More - NGK 5468

Be the first to review this product
$17.99
MPN: 5468
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

NGK Spark Plug P/N:5468
NGK Spark Plug P/N:5468
$17.99

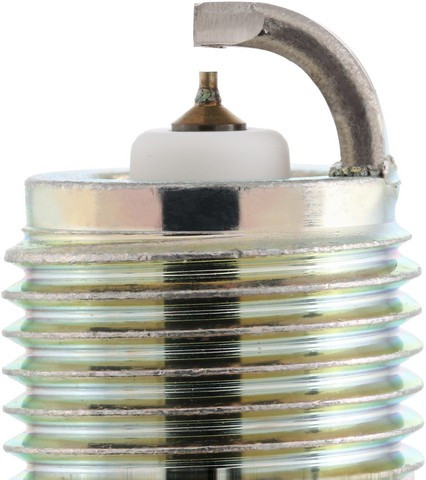

NGK 5468 spark plug for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles fires a spark across its electrode gap to light the air-fuel mixture in each cylinder.

  • NGK Laser Iridium High Ignitability series with a fine wire center electrode and an SPE ground electrode
  • NGK iridium spark plugs use an iridium alloy center electrode; iridium is 6x as dense as platinum with a very high melting point
  • Square platinum electrode (SPE) ground electrode for ignitability and service life in high-heat engines
  • Solid copper core, 98% pure, for heat dissipation, conductivity and ultra wide heat ranges
  • Trivalent metal plating for anti-corrosion and anti-seizing properties that ease installation and removal

Quick facts

  • Part: NGK 5468 spark plug
  • Fits: 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles
  • Material: ceramic insulator, iridium center electrode tip, platinum ground electrode tip
  • Condition: New

Hard starting, a rough idle or a misfire can mean worn plugs, but a weak ignition coil can produce them too, so these signs alone do not prove the plug is at fault.

Fits

It fits the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and the 2010-2013 Suzuki Kizashi 4-cylinder 2.4L. Both take four plugs, so order four and replace them together.

Specifications

Fit and size

  • Thread size: M14 - 1.25 (metric)
  • Reach: 26.5 mm (1.043 in)
  • Seat type: Flat
  • Pre-gap size: 1.1 mm (.044 in)
  • Heat range: 6
  • Quantity per vehicle: 4

Build and materials

  • Resistor type: Yes, 5000 ohm
  • Center electrode: fine wire, iridium tip, copper core
  • Ground electrode: platinum tip, nickel core, J-gap
  • Insulator: ceramic
  • NGK part number: SILFR6A11
  • Country of origin: Japan

In the box

One spark plug with its crush washer.

Interchange: 09482-00606
XP5325 · 4506 · 4704 · IKH20TT · PKH20TT · SILFR6A11 · 22401AA720

This part cross-references / interchanges with the following part numbers:

XP5325, 4506, 4704, IKH20TT, PKH20TT, 5468, SILFR6A11, 22401AA720, 09482-00606, 0948200606

Frequently Asked Questions

Is the NGK 5468 the right spark plug for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L?

Yes. NGK 5468 fits the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, and that engine takes four plugs.

Is this spark plug right for the 2010-2013 Suzuki Kizashi 4-cylinder 2.4L?

Yes. The 2010-2013 Suzuki Kizashi 4-cylinder 2.4L is on the fitment list for this plug, and it takes four.

What gap do NGK spark plugs such as the 5468 come set to?

The NGK 5468 has a pre-gap size of 1.1 mm (.044 in).

Is the NGK 5468 one of the NGK R spark plugs with a resistor?

Yes. The NGK 5468 is a resistor-type plug with a resistance of 5000 ohm.

What thread size and reach does this iridium spark plug have?

This plug has an M14 - 1.25 metric thread, a 26.5 mm (1.043 in) reach and a flat seat that uses a crush washer.
