NGK 9056 spark plug wire set for the 1985 Nissan Maxima V6 3.0L and other vehicles carries high-voltage current to the spark plugs. The cables are built to OEM tolerances with OE-quality or better materials.
- Each NGK wire uses variable pitch resistor winding for uniform resistance and electrical conductivity
- Variable pitch winding over a ferrite magnetic alloy coating suppresses EMI/RFI noise across the frequency spectrum
- Outer EPDM/silicone jacket withstands temperatures above 250 degrees C, and the inner insulation contains high-voltage current
- Stainless steel terminals with up to 3 serrated crimps that bite into the cable jacket and inner insulation to hold the terminal
- Spark plug boots glued to the cable with silicone sealer for a watertight seal
- Locking C-shaped spring clip with corrosion-resistant plating for a secure spark plug terminal connection
Quick facts
- Part: NGK 9056 spark plug wire set
- Fits: the 1985 Nissan Maxima V6 3.0L and other vehicles
- Condition: New
Misfires, a rough idle or hard starting can come from worn wires, and also from the plugs or coils. With the engine off and cool, look over each wire for cracked boots, a split jacket or corroded terminals before you order. A shop can test the resistance of the wires.
Fits
It fits the 1985 Nissan Maxima V6 3.0L and the 1984-1989 Nissan 300ZX V6 3.0L, with one set per car.
Specifications
Fit and size
- Quantity per vehicle: 1 set
- Wires: 6, with coil lead
- NGK part number: RC-NE77A
Build and materials
- Construction: variable pitch magnetic core cables
- Terminals: stainless steel
- Condition: New
- Warranty: NGK limited lifetime warranty, details on the package
In the box

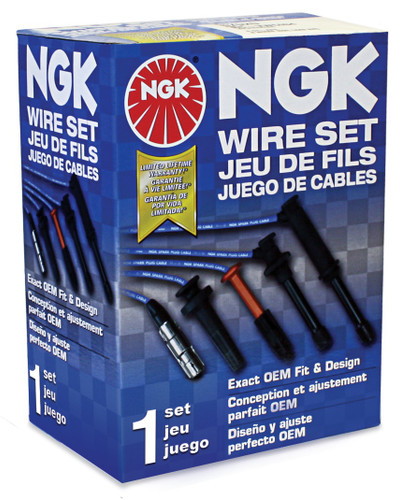

One spark plug wire set: six wires with the coil lead.
Installation notes
- Cylinder lead identification tags, where possible, make installation easier.
Interchange: 175-5791 · 175-5867 · 35-6059 · 671-6191 · 35-PF77312 · 35-PF77374 · RC-NE77A
86440 · 96440 · CH7606 · CH7669 · 700489 · 09802 · 09809 · 9802 · 9809 · 127606S · 127669 · 176001 · 55313 · 55327 · 55330 · 7615 · 7643 · 7644
This part cross-references / interchanges with the following part numbers:
RC-NE77A, 86440, 96440, CH7606, CH7669, 175-5791, 175-5867, 700489, 09802, 09809, 9802, 9809, 35-6059, 671-6191, 9056, 127606S, 127669, 35-PF77312, 35-PF77374, 176001, 55313, 55327, 55330, 7615, 7643, 7644
Frequently Asked Questions
Will NGK 9056 fit the 1985 Nissan Maxima V6 3.0L?
Yes, NGK 9056 is listed for the 1985 Nissan Maxima V6 3.0L. The car takes one set.
Are these NGK plug wires right for the 1984-1989 Nissan 300ZX V6 3.0L?
Yes, NGK 9056 is also listed for the 1984-1989 Nissan 300ZX V6 3.0L, and the car takes one set.
What do you get in this NGK wire set?
You get one set of six spark plug wires with the coil lead. The spark plug boots are already glued to the cables with silicone sealer.
Do NGK spark plug wire sets like this one use variable pitch windings?
Yes. This set has variable pitch resistor cables for uniform resistance, and its magnetic core cables use a variable pitch winding over a ferrite magnetic alloy coating for EMI/RFI noise suppression.
Are these NGK blue spark plug wires?
Yes, blue is among the colors listed for NGK 9056. NGK lists this set under both 9056 and RC-NE77A, so you can search by either number.
