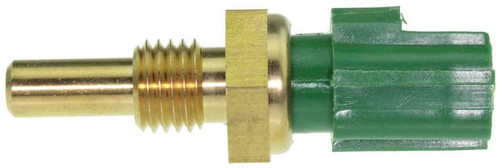

NTK EF0105 front coolant temperature sensor for the 1989-1991 Toyota Camry 4-cylinder 2.0L or V6 2.5L, the 1992-2001 Camry 4-cylinder 2.2L, the 1992-2006 Camry V6 3.0L, the 2004-2006 Camry V6 3.3L, the 2005 Camry 4-cylinder 2.4L and other vehicles sends the ECM an analog signal that reports coolant temperature. The ECM uses this engine coolant temperature sensor signal for the air/fuel ratio, the cooling fan(s) and the temperature gauge.

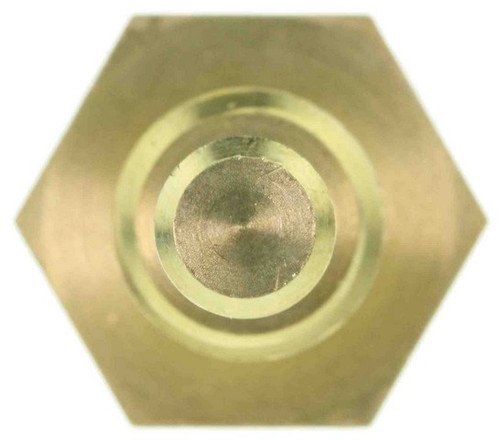

- Brass housing with thermal conductive grease inside to increase sensor response time
- Thermal conductive grease carries temperature accurately to the thermistor
- Tested under thermal shock, vibration and OBD verification
Quick facts
- Part: NTK EF0105 coolant temperature sensor
- Also called: engine coolant temperature sensor
- Fits: the 1989-1991 Toyota Camry 4-cylinder 2.0L or V6 2.5L, the 1992-2001 Camry 4-cylinder 2.2L, the 1992-2006 Camry V6 3.0L, the 2004-2006 Camry V6 3.3L, the 2005 Camry 4-cylinder 2.4L and other vehicles
- Position: Front
- Material: Brass housing
- Condition: New
Reasons to replace it include a check engine light, an erratic or dead temperature gauge, and erratic or no cooling fan operation. Those signs can have other causes, so with the engine off and cool, look over the sensor, its connector and its wiring for cracks, corrosion or leaks first. This listing is one sensor, and the engine takes one.
Fits
It is also a coolant temperature sensor for the 2011-2013 Mazda 3 4-cylinder 2.3L and the 2011-2018 3 4-cylinder 2.0L or 2.5L, and for the 2013-2016 Mazda CX-5 4-cylinder 2.0L and the 2014-2016 CX-5 4-cylinder 2.5L. If your car is not one of these, find it by your own year, make and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
Build and materials
- Material: Brass housing
- Construction: Thermal conductive grease inside the housing
- Condition: New
- Warranty: NTK 3 year/36,000-mile warranty
Installation notes
- Thread sealant or an o-ring is installed where applicable.
- Mounting clip(s) are included where applicable.
- Wires and probe length match OE.
Frequently Asked Questions
Is this the ECT sensor for a 1992-2006 Toyota Camry V6 3.0L?
Yes. NTK EF0105 is a front coolant temperature sensor listed for the 1992-2006 Toyota Camry V6 3.0L, and that application takes one sensor.
Does this temperature sensor fit the 2004-2006 Toyota Camry V6 3.3L?
Yes. NTK EF0105 is listed for the 2004-2006 Toyota Camry V6 3.3L. If your car is not named here, find it by year, make and engine in the "Vehicles it fits" section.
Why does the NTK EF0105 have thermal conductive grease in a brass housing?
The grease inside the brass housing increases sensor response time and carries temperature accurately to the thermistor in this NTK EF0105 coolant temperature sensor.
Can engine overheating mean the coolant temperature sensor needs replacing?
Yes, overheating is among the reasons to replace this kind of sensor, along with an erratic temperature gauge or a check engine light. A shop can test the sensor circuit.
Does this coolant temperature sensor come with thread sealant or an o-ring?
Thread sealant or an o-ring is installed where applicable, and mounting clip(s) are included where applicable.
