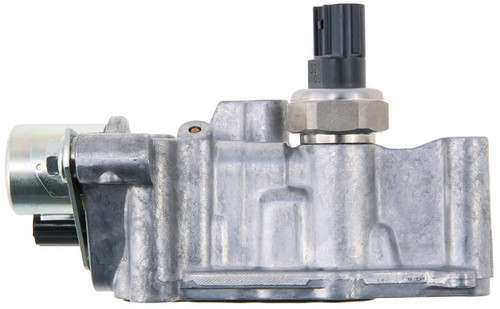

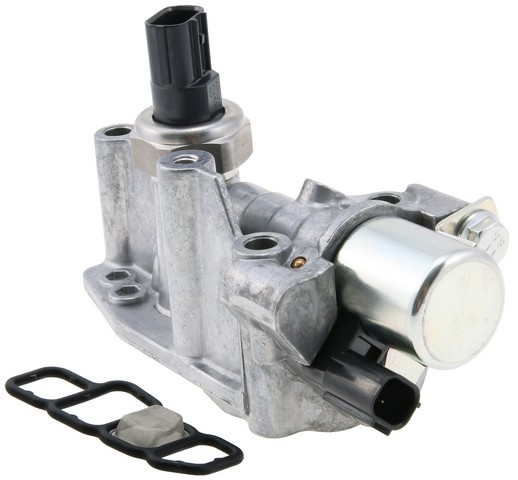

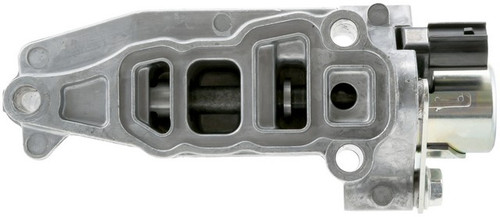

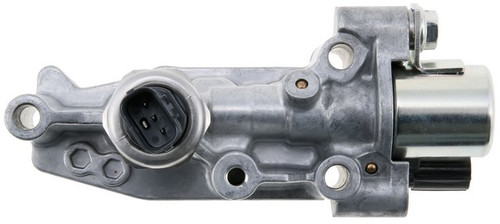

NTK VV0125 VVT solenoid for the 2006-2011 Honda Civic 4-cylinder 1.8L controls the oil flow that adjusts valve timing. The engine computer operates it electrically to change cam timing.
- Meets the demands of VVT engines at both low and high rpm
- Hard-coat anodized spool valve to prevent corrosion and increase service life
- Precision-wound, coated-copper windings to increase solenoid longevity
- High-strength thermoplastic that resists temperature, moisture and chemicals
- Fluorocarbon O-rings to help prevent oil leakage
- 100% tested and inspected, with an end-of-production test in oil so the valve is primed
Quick facts
- Part: NTK VV0125 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2006-2011 Honda Civic 4-cylinder 1.8L
- Material: Metal (housing)
- Condition: New
Rough idle, a valve-timing check-engine light or uneven power delivery can involve a worn VVT solenoid, though those signs have other sources too. Before you replace the solenoid, rule out low or dirty engine oil (checked with the engine off), a damaged connector or loose wiring, and any other stored code.
Fits
This NTK VV0125 is a direct-fit replacement for the 2006-2011 Honda Civic 4-cylinder 1.8L, which takes one solenoid. It is manufactured to meet and/or exceed OE fit, form and function, with precise OE valve body dimensions.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Voltage: 12.0 V DC
- Terminals: 6 male blade terminals
- Connector: female, rectangular and square, black
Build and materials
- Housing material: metal
- Seal: included
- Grade: standard replacement
- Condition: new
- Warranty: NTK 3 year/36,000-mile warranty
- Country of origin: Japan
In the box
One VVT solenoid with its seal. Mounting hardware is not included, so plan on new fasteners; the old ones may not be reusable.
Interchange: 916-706 · 15810-RNA-A01
VV1131 · VVS1787 · VVT231
This part cross-references / interchanges with the following part numbers:
VV1131, 916-706, VVS1787, 15810-RNA-A01, VVT231
Frequently Asked Questions
Is the NTK VV0125 right for a 2006-2011 Honda Civic 4-cylinder 1.8L?
Yes. The NTK VV0125 is listed for the 2006-2011 Honda Civic 4-cylinder 1.8L, and that engine takes one solenoid.
What comes with the NTK engine variable valve timing VVT solenoid?
The box holds one solenoid with its seal. Mounting hardware is not included.
What voltage and connector does this VVT solenoid use?
This solenoid runs on 12.0 volts DC. It has six male blade terminals and a black female connector.
Could a rough idle with a valve-timing light mean the VVT solenoid is failing?
It can be one cause among several. With the engine off, a look at the connector for cracks or damage is a fair start; a shop can run the electrical and oil-flow tests.
What warranty covers the NTK VV0125 VVT solenoid?
NTK backs the VV0125 with a 3 year/36,000-mile warranty.
