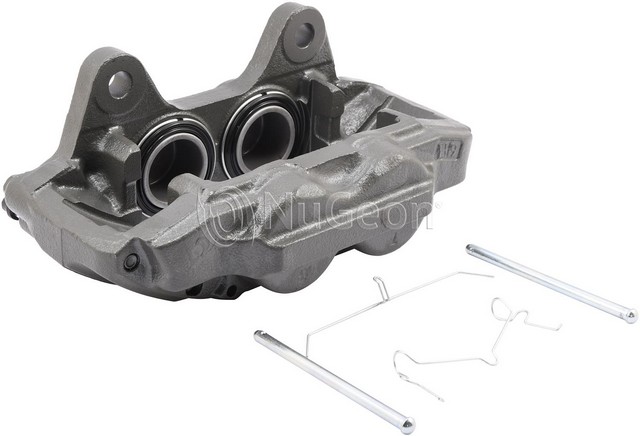

TERREPOWER 97P01756A front right brake caliper for the 2015-2024 Toyota 4Runner and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper replaces a worn or leaking one on the front right wheel.
- Fixed caliper design with four pistons
- Steel pistons in a cast iron housing
- E-coated finish on the caliper
- Caliper slides and dust boots included
Quick facts
- Part: TERREPOWER 97P01756A brake caliper
- Also called: disc brake caliper
- Fits: 2015-2024 Toyota 4Runner and other vehicles
- Position: Front right
- Material: Cast iron housing, steel pistons
- Condition: Remanufactured
Pulling to one side, uneven pad wear or fluid around the caliper can mean a caliper is sticking or leaking. Before you replace it, rule out worn pads, a damaged brake hose and a stuck slide as the source of the pulling. Replace the calipers on both front wheels together; this listing is one caliper for the front right, and the front left is a separate part. Each front wheel takes one.
Fits
It is a direct-fit front caliper for the 2015-2024 Toyota 4Runner and the 2016-2023 Lexus GX460, and it goes on the front right.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston quantity: 4
- Piston diameter: 48.01 mm (1.89 in)
- Inlet thread: M10-1.0
- Bleeder screw thread: M7-1.0
- Housing cast number: 14WB
Build and materials
- Caliper type: Fixed
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: E-coated
- Country of origin: Mexico
In the box
One remanufactured caliper with its slides, dust boots, bleeder screw, caliper and pad hardware, mounting hardware and crush washer(s). The bracket, bracket bolts, mounting bolts, pads, wear sensors, anti-squeal shims and bleeder screw cap are not included. Plan on new mounting bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D976
Frequently Asked Questions
Is this the right caliper for the front right of a 2015-2024 Toyota 4Runner?
Yes, TERREPOWER 97P01756A is a front right caliper for the 2015-2024 Toyota 4Runner; the front left side is a separate part.
Is this one of the brake calipers for the 2016-2023 Lexus GX460?
Yes, TERREPOWER 97P01756A fits the front right of the 2016-2023 Lexus GX460, and the left side is ordered separately.
Does this remanufactured caliper come with brake pads and a bracket?
No, pads, bracket, bracket bolts, wear sensors and anti-squeal shims are not included; it comes with slides, dust boots, a bleeder screw, hardware and crush washer(s).
How many pistons does this caliper have, and how big are they?
This fixed caliper has four steel pistons with a 48.01 mm (1.89 in) diameter. The line inlet takes an M10-1.0 fitting.
What size is the bleeder screw on the TERREPOWER 97P01756A?
The bleeder screw is M7-1.0 and is included with the caliper. The bleeder screw cap is not included.
