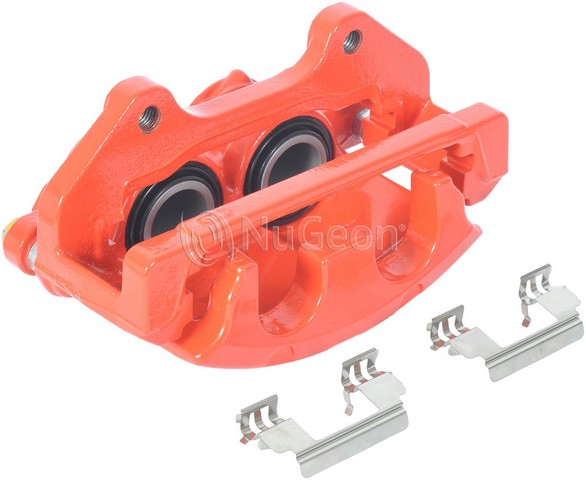

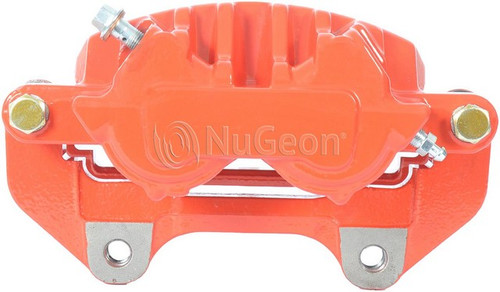

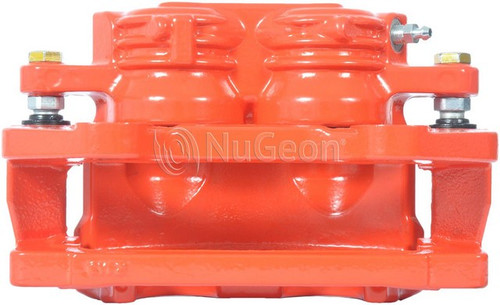

Nugeon 99R17369B front right brake caliper for the 2005-2008 Pontiac Grand Prix clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating type.

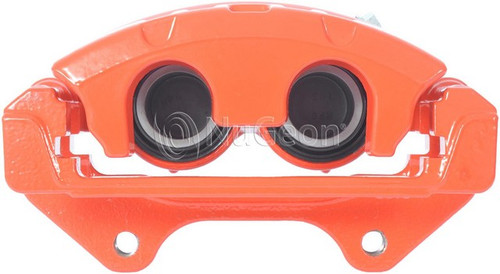

- Two steel pistons, each 45 mm (1.772 in) in diameter
- Aluminum housing with a red powder-coated finish
- Banjo bolt inlet with an M10-1.0 thread and crush washers
- Bracket, caliper slides, dust boots and bleeder screw included
Quick facts
- Part: Nugeon 99R17369B brake caliper
- Also called: disc brake caliper
- Fits: 2005-2008 Pontiac Grand Prix
- Position: Front right
- Material: Aluminum housing, steel pistons
- Condition: Remanufactured
Pulling to one side under braking, fluid at the boot or fitting, or a pad wearing faster than its partner can mean a caliper is sticking or leaking. Before replacing it, look over the caliper, hose and fitting for wetness with the engine off and measure the pad wear at the next brake service, since a tired hose can give the same picture.
Fits
It is a direct-fit replacement brake caliper for the 2005-2008 Pontiac Grand Prix. This listing is one caliper for the front right; the front left is a separate part, and the two sides are normally replaced together. The front axle takes one caliper on each side.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 45 mm (1.772 in)
- Piston quantity: 2
- Inlet fitting: Banjo bolt
- Inlet port thread: M10-1.0 x 27.32 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Aluminum
- Piston material: Steel
- Finish: Powder coated, red
- Housing cast number: K247-113C
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One front right brake caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, and the bracket and caliper mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Is this Nugeon caliper the right one for the front right of a 2005-2008 Pontiac Grand Prix?
Yes. Nugeon 99R17369B is the front right caliper for the 2005-2008 Pontiac Grand Prix. The front left takes its own separate caliper.
Do brake pads and mounting bolts come with the 99R17369B caliper?
No. Nugeon 99R17369B comes without pads, anti-squeal shims, wear sensors, a bleeder screw cap, and bracket or caliper mounting bolts. The bracket, slides, dust boots, bleeder screw and crush washers are included.
What size are the pistons in this front right brake caliper?
This caliper has two steel pistons, each 45 mm (1.772 in) in diameter, in a floating aluminum housing.
What fitting and thread does this disc brake caliper use for the brake hose?
The inlet is a banjo bolt fitting with an M10-1.0 x 27.32 mm port thread. The bleeder screw thread is M10-1.0.
Is this front right caliper new or remanufactured, and where is it made?
It is remanufactured and has a red powder-coated finish. The country of origin is Mexico.
