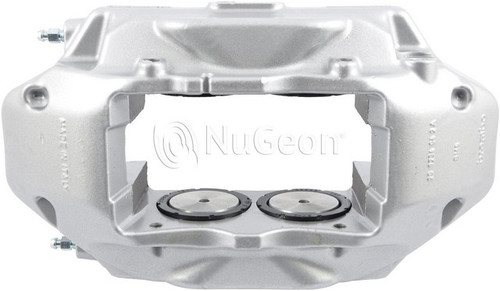

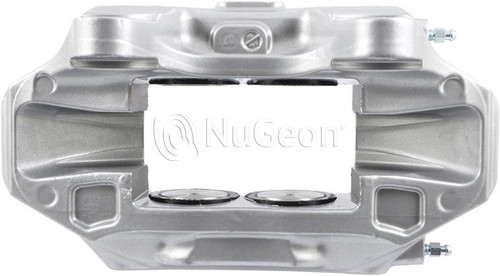

Nugeon 97S03349B front right brake caliper for the 2006-2017 Volkswagen Touareg is a remanufactured unit that squeezes the pads against the rotor to slow the vehicle. Brake fluid pressure pushes the pistons of this Nugeon brake caliper outward against the pads.
A leaking or sticking caliper can show up as fluid around a piston boot, pulling to one side under braking, a dragging brake or uneven pad wear. If the caliper is the cause, this one replaces the front right unit. Other brake parts can show similar symptoms, so before replacing it, check the boot for wetness and compare pad wear side to side during a brake service, with the brakes cool.
It fits the 2006-2017 Volkswagen Touareg, with one caliper on each side of the front axle. This listing is one disc brake caliper for the front right; the front left is a separate part to order on its own, and the two are normally replaced together.
Fit and size
Build and materials

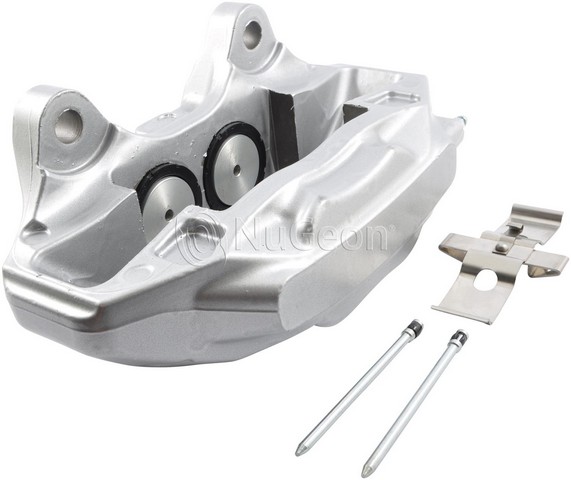

One remanufactured brake caliper with a bleeder screw, dust boots, crush washers and mounting hardware. Not included: brake pads, bracket, bracket mounting bolts, mounting bolt, caliper and pad hardware, slides, anti-squeal shims, wear sensors and bleeder screw cap. Plan on new bolts where none are supplied, since the old ones may not be reusable.
Will the Nugeon 97S03349B work as a 2006-2017 VW Touareg brake caliper?
Yes. Nugeon 97S03349B is the front right brake caliper for the 2006-2017 Volkswagen Touareg. The front left side takes a separate caliper.
Does this Nugeon caliper come with brake pads or a bracket?
No. Nugeon 97S03349B includes a bleeder screw, dust boots, crush washers and mounting hardware, but the pads, bracket and bracket mounting bolts are not included.
How many pistons does this front right brake caliper have and how big are they?
It is a fixed caliper with four aluminum pistons. The piston diameter is 46 mm (1.811 in).
Could a vehicle pulling to one side under braking come from a sticking caliper?
It can be one cause. Worn pads, brake hoses and tires can also pull a vehicle to one side, so have the brakes inspected promptly rather than driving on them.
Is this caliper fixed or floating, and what thread does the bleeder screw use?
This brake caliper is a fixed type with an M8-1.25 bleeder screw thread. The inlet port thread is M10-1.0.
