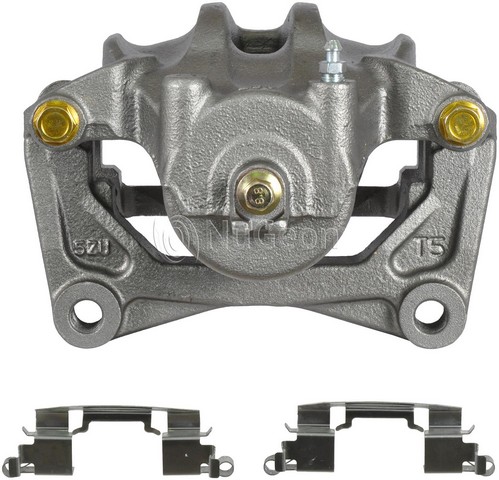

Nugeon 99-00576B front right brake caliper for the 2003-2007 Nissan Murano squeezes the brake pad against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces a front right caliper that is worn, sticking or leaking fluid.
- Floating disc brake caliper with one 64 mm steel piston
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-00576B brake caliper
- Also called: disc brake caliper
- Fits: 2003-2007 Nissan Murano and 2009-2011 Murano
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A car that pulls to one side under braking, brake fluid around the caliper or a pad that wears unevenly can mean the caliper is sticking. These signs alone do not prove the caliper is at fault, since a worn brake hose can also pull a car to one side. This listing is one caliper for the front right; the front left is ordered separately. The front axle takes one on each side, and both are normally replaced together.
Fits
It fits the 2003-2007 Nissan Murano and the 2009-2011 Murano.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Caliper type: Floating
- Piston quantity: 1
- Piston diameter: 64 mm (2.52 in)
Build and materials
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast numbers: 52R, T
- Country of origin: Mexico
In the box
One caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, bracket mounting bolts and pad hardware are not included, so plan on new bracket bolts.
Frequently Asked Questions
Does this Nissan Murano caliper cover both 2003-2007 and 2009-2011?
Yes. Nugeon 99-00576B fits the 2003-2007 Nissan Murano and the 2009-2011 Murano as the front right caliper. The front left side is a separate part.
Does the Nugeon caliper come with the bracket and slides?
Yes. Nugeon 99-00576B includes the bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads and bracket mounting bolts are not included.
What size piston does this front right caliper have?
It has one steel piston, 64 mm (2.52 in) across, in a floating design. The housing is cast iron.
How do I know if this front right caliper is going bad?
Pulling to one side when braking, uneven pad wear or brake fluid around the caliper can be signs. A shop can test the brake system to confirm.
What inlet fitting does this caliper use?
This caliper uses a banjo bolt inlet with an M10-1.0 x 23.4 port thread. Crush washers are included.
