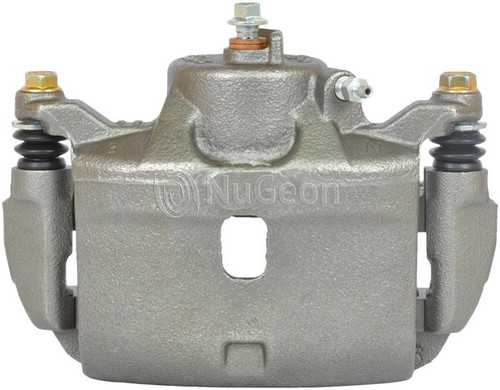

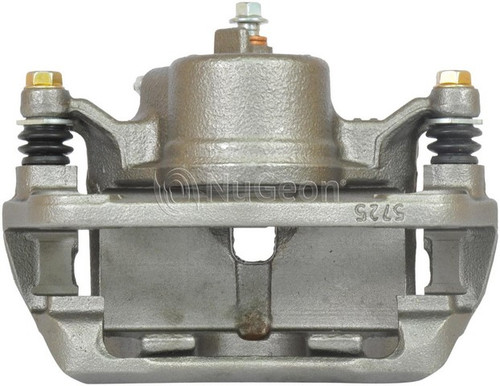

Nugeon 99-00946A front right brake caliper for the 2002-2004 Honda CR-V and other vehicles clamps the brake pads against the rotor to slow the wheel. This one is remanufactured.
- Floating caliper design
- Single steel piston, 57 mm across
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with an M10-1.0 x 23.4 port thread
Quick facts
- Part: Nugeon 99-00946A brake caliper
- Also called: disc brake caliper
- Fits: 2002-2004 Honda CR-V and other vehicles
- Position: Front right
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side, uneven pad wear or fluid near the wheel. These signs alone do not prove the caliper is the problem; a worn brake hose can cause them too. This listing is one caliper for the front right wheel. The front left is a separate part, and the two are normally replaced together.
Fits
On the 2003-2011 Honda Element it is the brake caliper for the front right wheel, as it is on the 2002-2004 Honda CR-V.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 (this side)
- Piston diameter: 57 mm (2.244 in)
- Inlet port thread: M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0
- Housing cast numbers: 5725, 5728, B
Build and materials
- Caliper type: Floating
- Inlet fitting: Banjo bolt
- Piston material: Steel
- Housing material: Cast iron
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. This listing holds one caliper, and the front right takes one. Brake pads, wear sensors, anti-squeal shims, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bracket bolts.
Frequently Asked Questions
Is this the right caliper for the front right of a 2002-2004 Honda CR-V?
Yes. Nugeon 99-00946A is the front right brake caliper for the 2002-2004 Honda CR-V. The front left side is a separate part.
Does the Nugeon brake caliper come with the bracket, or do I still need pads?
Nugeon 99-00946A includes the bracket, slides, dust boots, hardware, bleeder screw and crush washers. Pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included.
Is this disc brake caliper floating or fixed, and what size is the piston?
This front right caliper is a floating design with one steel piston. The piston is 57 mm (2.244 in) across.
Is the Nugeon caliper new or remanufactured?
This Nugeon 99-00946A is remanufactured. Its cast iron housing carries the cast numbers 5725, 5728 and B.
Can a sticking caliper make the car pull to one side?
It can, and uneven pad wear or fluid near the wheel can point the same way. If the car pulls or the brakes feel wrong, have them inspected promptly.
