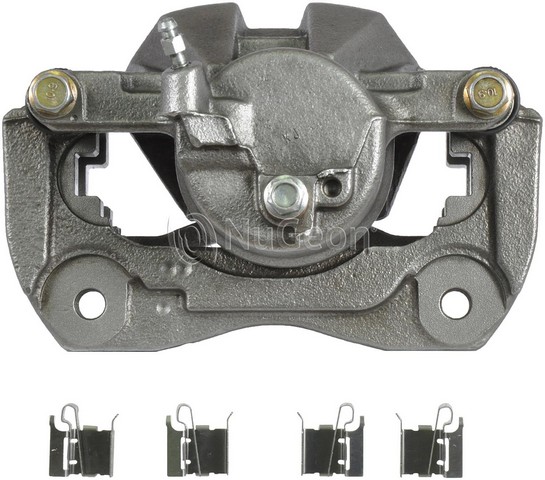

Nugeon 99-01697A front left brake caliper for the 2006-2018 Toyota RAV4 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon caliper is a floating disc brake caliper with one steel piston.
A pull to one side when braking, a brake that drags, fluid around the piston boot or one front pad wearing faster than the other can mean this caliper is worn, though a failing brake hose or worn pads can be behind the same signs, so find the cause before replacing it.
This front left caliper is a direct-fit replacement for the 2006-2018 Toyota RAV4, the 2016-2020 Toyota Mirai and the 2017-2018 Toyota Corolla iM, which each take one at that wheel. This listing is one caliper for the front left; the front right is a separate part, and the two front calipers are normally replaced together.
Fit and size
Build and materials
One caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw, one banjo bolt and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new mounting bolts.
Interchange / FMSI:
FMSI: D1211
Is the Nugeon 99-01697A a Toyota RAV4 brake caliper for the 2006-2018 model years?
Yes, Nugeon 99-01697A is a front left caliper for the 2006-2018 Toyota RAV4. Other Toyota, Scion and Pontiac models fit too; look up your own car in the "Vehicles it fits" section.
Does the Nugeon 99-01697A come with the bracket and bleeder screw?
Yes. Nugeon 99-01697A comes with the bracket, slides, dust boots, pad hardware, bleeder screw, banjo bolt and crush washers. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included.
What size is the banjo inlet on this front left caliper?
The inlet port thread is M10-1.0 x 23.4 mm, and one banjo bolt comes with the caliper. The bleeder screw thread is M7-1.0.
How can I tell if a front left caliper is sticking?
Signs can include the car pulling to one side when braking, brake fluid near the piston boot, or one front pad wearing faster than the other. A shop can test the brake hydraulics.
Is the piston in this caliper steel?
Yes. This caliper has one steel piston, 63.37 mm in outside diameter, in a cast iron housing with a rust preventative finish.
