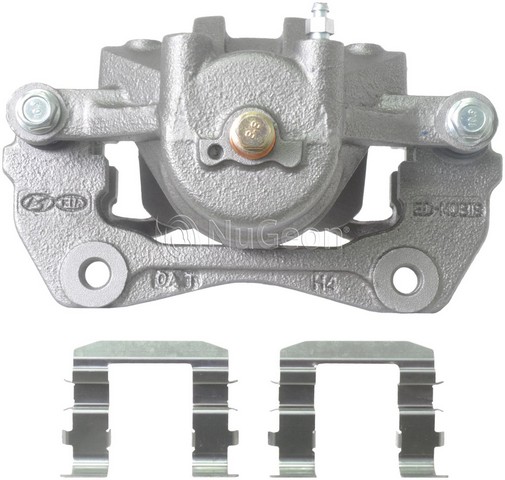

Nugeon 99-01834B front left brake caliper for the 2009-2012 Hyundai Elantra and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design made for the front left wheel.
- Single steel piston, 57 mm (2.24 in) across
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting with an M10 - 1.0 thread
- Bleeder screw with an M10-1.0 thread and a bleeder screw cap
Quick facts
- Part: Nugeon 99-01834B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2012 Hyundai Elantra and other vehicles
- Position: Front left
- Material: Cast iron (caliper casting), steel (piston)
- Condition: Remanufactured
A caliper that sticks or leaks can show up as uneven pad wear, a dragging brake or the vehicle pulling to one side when braking. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can cause them too.
Fits
Front calipers are normally replaced as a pair, so plan on the right side too; this listing is one caliper for the front left, and the front right is a separate part. The 2009-2012 Hyundai Elantra, 2010-2013 Kia Forte and 2010-2013 Kia Forte Koup all take this caliper, one per front left wheel, along with other vehicles. Driving something else? Look up your own year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Piston diameter: 57 mm (2.24 in)
- Piston quantity: 1
- Inlet: banjo bolt, M10 - 1.0 thread
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and cap, caliper and pad hardware, and crush washer. Brake pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included, so plan on new mounting bolts.
Interchange / FMSI:
FMSI: D1397
Frequently Asked Questions
Is this brake caliper replacement for the 2009-2012 Hyundai Elantra the front left or the front right?
This Nugeon 99-01834B is for the front left only; the front right is a separate part. It fits the 2009-2012 Hyundai Elantra and other vehicles, so check your own car in the "Vehicles it fits" section.
Is this a brake caliper for the 2010-2013 Kia Forte and the 2010-2013 Kia Forte Koup?
Yes. Nugeon 99-01834B in the front left position fits the 2010-2013 Kia Forte and the 2010-2013 Kia Forte Koup, including the L4-2.0L engine.
Does the Nugeon caliper come with the bracket and slides?
Yes. It includes the mounting bracket, slides, dust boots, bleeder screw and cap, hardware and crush washer. Pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included.
Is this Nugeon disc brake caliper floating or fixed, and how big is the piston?
It is a floating caliper with one steel piston, 57 mm (2.24 in) in diameter. The inlet is a banjo bolt fitting with an M10 - 1.0 thread.
What can a leaking or sticking front left brake caliper look like?
Brake fluid near the wheel or a soft pedal can point to a caliper problem. Brakes are a safety system, so have the car inspected promptly by a shop.
