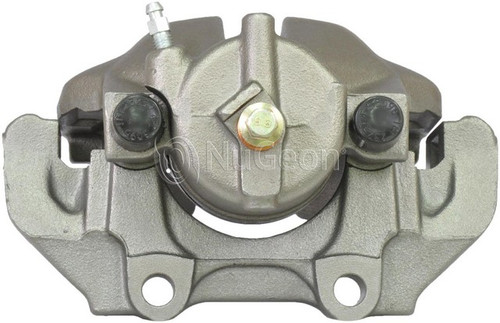

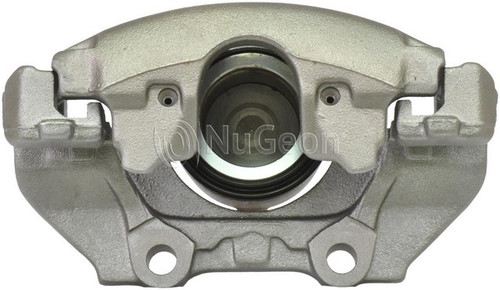

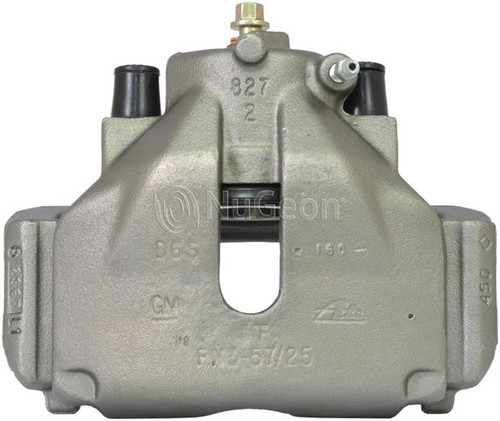

Nugeon 99-09109A front left brake caliper for the 2001-2005 Saturn L300 and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces the front left unit when it sticks or leaks.
- Floating caliper with one steel piston, 57 mm (2.244 in) across
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet with an M10-1.5 port thread
- Bleeder screw with an M8-1.25 thread
Quick facts
- Part: Nugeon 99-09109A brake caliper
- Also called: disc brake caliper
- Fits: 2001-2005 Saturn L300 and other vehicles
- Position: Front left
- Material: Cast iron (housing), steel (piston)
- Condition: Remanufactured
A sticking or leaking disc brake caliper can show up as the car pulling to one side, a burning smell after driving or one pad wearing faster than the other. A tire problem can also pull a car to one side, so these signs alone do not prove the caliper is at fault.
Fits
The 2001-2005 Saturn L300, the 1999-2003 Saab 9-3 and the 2001-2003 Saturn L200 take this caliper, along with many other vehicles.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Piston outside diameter: 57 mm (2.244 in)
- Piston quantity: 1
- Inlet fitting: Banjo bolt, port thread M10-1.5 x 23.14 mm
- Bleeder screw thread: M8-1.25
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast numbers: 57/25, 827, 919, 9883
- Country of origin: Mexico
In the box
One front left brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, the bleeder screw cap, bracket mounting bolts and caliper and pad hardware are not included, so plan on new bolts, since the old ones may not be reusable. This listing holds one caliper and the front left takes one; the front right caliper is a separate part, ordered separately and normally replaced at the same time.
Frequently Asked Questions
Does this work as a Saab 9-3 caliper for the front left of a 1999-2003 Saab 9-3?
Yes. Nugeon 99-09109A is a front left caliper for the 1999-2003 Saab 9-3. If your car is not named here, check the "Vehicles it fits" section for it.
Is this L300 brake caliper for the front left wheel of a 2001-2005 Saturn L300?
Yes. Nugeon 99-09109A is the front left caliper for the 2001-2005 Saturn L300, and the front right is a separate part ordered on its own.
Does this remanufactured brake caliper include the mounting bracket and pads?
This brake caliper includes the mounting bracket, slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, the bleeder screw cap, bracket mounting bolts and pad hardware are not included.
What bleeder screw and inlet thread does this Nugeon caliper have?
Nugeon 99-09109A has an M8-1.25 bleeder screw, and its banjo bolt inlet port is M10-1.5 x 23.14 mm.
What can a sticking front left brake caliper feel like while driving?
The car can pull to one side or give off a burning smell, and one pad can wear faster than the other. A brake shop can test the caliper if you are unsure.
