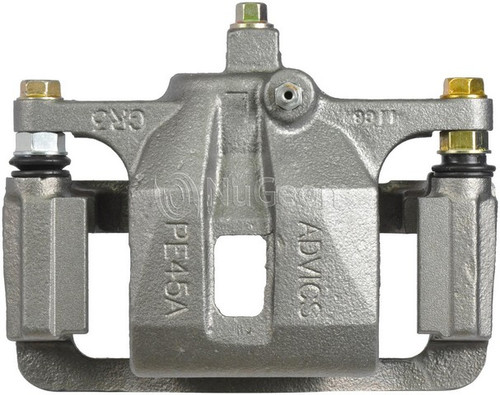

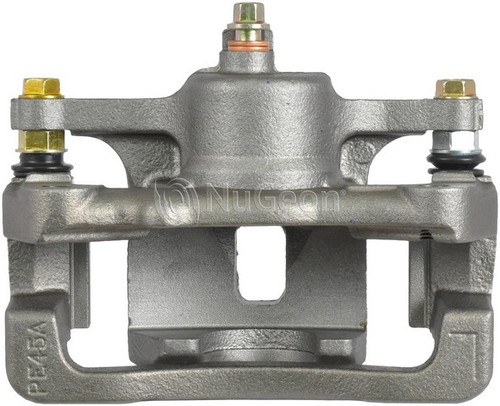

Nugeon 99-17363A rear left brake caliper for the 2006-2010 Hummer H3 and other vehicles clamps the brake pads against the rotor to slow the wheel. This is a remanufactured caliper with a rust preventative finish.
- Floating caliper design with one 45 mm piston
- Cast iron housing with a steel piston
- Banjo bolt inlet fitting with an M10-1.5 port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-17363A brake caliper
- Also called: disc brake caliper
- Fits: 2006-2010 Hummer H3 and other vehicles
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
Pulling to one side, a dragging rear brake or fluid around the caliper can mean this caliper is worn, though a brake hose or the brake pads can be behind some of them too, so confirm which part is at fault before you replace it.
Fits
It is a direct-fit 2006-2010 Hummer H3 brake caliper, and it also fits the 2009-2010 Hummer H3T. The rear left of the 2006-2010 Hummer H3 takes one; the rear right on that axle is a separate part, normally replaced at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston: 1, 45 mm (1.772 in) diameter
- Inlet: banjo bolt, M10-1.5 x 23.14 mm port thread
- Bleeder thread: M10-1.0
- Housing cast numbers: PE45A, L
Build and materials
- Type: Floating, remanufactured
- Housing: Cast iron
- Piston: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, bracket mounting bolts, caliper and pad hardware, wear sensors and a bleeder screw cap are not included. Plan on new bracket bolts, since the old ones may not be reusable.
Frequently Asked Questions
Does the Nugeon 99-17363A rear left caliper fit the 2009-2010 Hummer H3T?
Yes. Nugeon 99-17363A fits the 2009-2010 Hummer H3T as well as the 2006-2010 Hummer H3, in the rear left position.
Does this disc brake caliper come with the bracket?
Yes. Nugeon 99-17363A includes the bracket, caliper slides, dust boots, bleeder screw and crush washers; pads, shims and bracket mounting bolts are not included.
Is this Nugeon brake caliper remanufactured?
Yes. This rear left caliper is remanufactured, with a cast iron housing, a steel piston and a rust preventative finish.
How can I tell if my rear left caliper is worn?
During a brake service, a wet caliper, a torn dust boot or uneven pad wear can point to a worn caliper. A pull to one side or a dragging brake is what drivers notice.
What inlet and bleeder threads does this Nugeon caliper use?
The inlet is a banjo bolt fitting on an M10-1.5 x 23.14 mm port, and the bleeder screw is M10-1.0.
