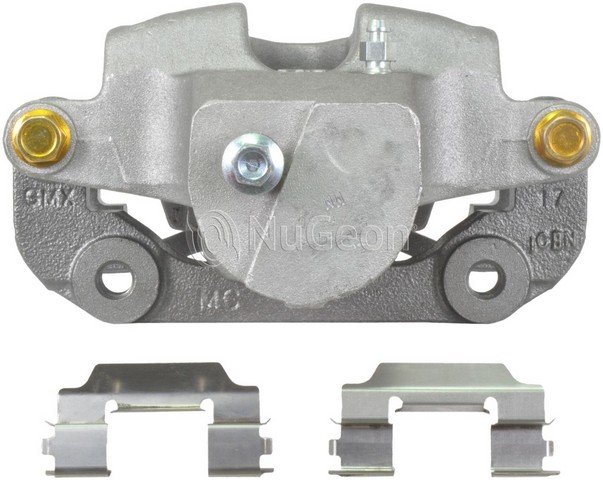

Nugeon 99-17424B rear left brake caliper for the 2010-2015 Chevrolet Camaro and other vehicles slows the wheel by pressing the pads against the rotor. Brake fluid pressure moves the piston of this remanufactured unit.
- Floating caliper with one steel piston, 45 mm in diameter
- Aluminum caliper casting
- Rust preventative finish on the caliper
- Banjo bolt inlet fitting with an M10-1.0 x 27.32 inlet port thread
Quick facts
- Part: Nugeon 99-17424B brake caliper
- Also called: disc brake caliper
- Fits: 2010-2015 Chevrolet Camaro and other vehicles
- Position: Rear left
- Material: Aluminum casting, steel piston
- Condition: Remanufactured
Brake fluid weeping around the caliper, uneven pad wear or a pull to one side while braking can mean a caliper is wearing out. A pull alone does not prove this caliper is the cause, since a collapsed brake hose can pull the car the same way.
Fits
This brake caliper is a direct-fit replacement for the 2010-2015 Chevrolet Camaro, the 2010-2011 Cadillac SRX and the 2011 Saab 9-4X, and the rear left takes one. This listing is one caliper for the rear left; the rear right is a separate part, and the two calipers on that axle are normally replaced at the same time.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston quantity: 1
- Piston diameter: 45 mm (1.772 in)
- Inlet fitting: Banjo bolt
- Inlet port thread: M10-1.0 x 27.32 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Casting material: Aluminum
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: BC140129
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Does the 2011 Saab 9-4X take this rear left brake caliper?
Yes. Nugeon 99-17424B fits the 2011 Saab 9-4X as a rear left caliper. The rear right is a separate part.
Does this disc brake caliper come with the bracket and bleeder screw?
Yes. Nugeon 99-17424B includes the bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, shims, wear sensors and bracket mounting bolts are not included.
Is this Nugeon brake caliper a floating or fixed design?
Floating. Nugeon 99-17424B has one steel piston that measures 45 mm (1.772 in) across.
What inlet fitting does the Nugeon caliper use?
A banjo bolt inlet fitting, with an M10-1.0 x 27.32 inlet port thread. Crush washers come with the caliper.
How can I tell if a rear brake caliper is sticking?
A dragging rear brake, a burning smell after a drive or noise from one rear wheel can point to a sticking caliper. A shop can confirm it.
