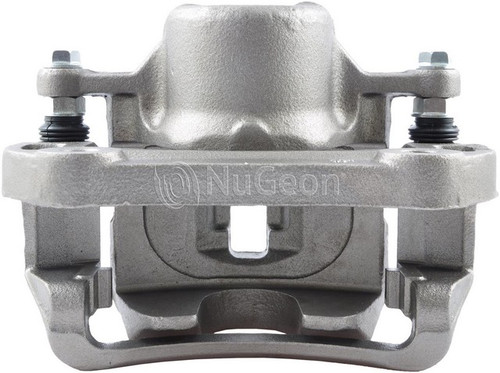

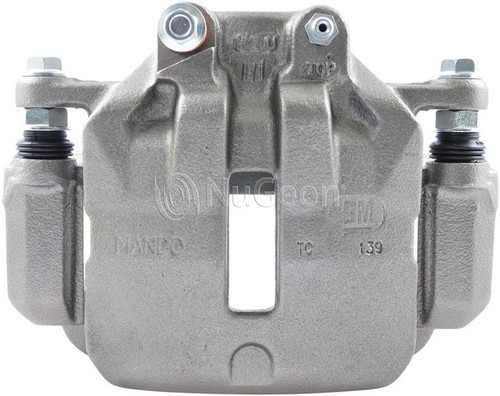

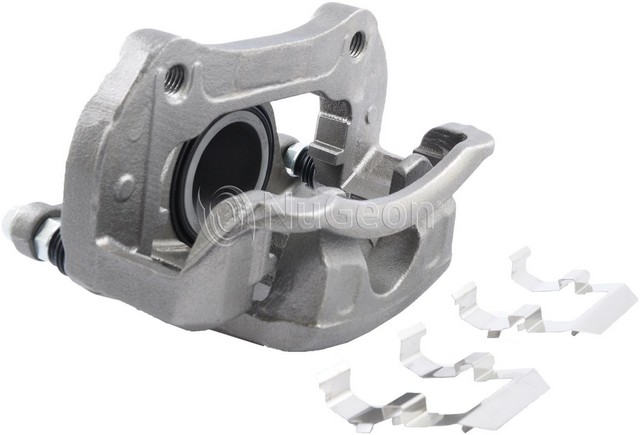

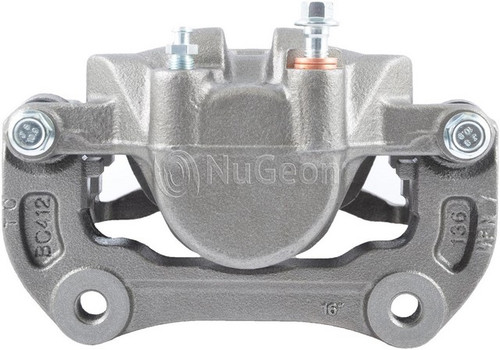

Nugeon 99-17433A front left brake caliper for the 2013-2015 Chevrolet Malibu and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces a worn or leaking front left caliper.
- Floating caliper with one steel piston, 60 mm (2.36 in) across
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting with an M10 - 1.5 thread
- Bleeder screw thread of M10 - 1.0
Quick facts
- Part: Nugeon 99-17433A brake caliper
- Also called: disc brake caliper
- Fits: the 2013-2015 Chevrolet Malibu and other vehicles
- Position: Front left
- Material: Cast iron casting, steel piston
- Condition: Remanufactured
A seized slide, a worn rotor or a collapsed brake hose can be behind a pull to one side under braking, uneven pad wear or brake fluid near the wheel, just as a sticking or leaking disc brake caliper can, so find the cause before you buy.
Fits
Calipers are normally replaced in pairs across an axle, and this listing is one front left caliper; the front right is a separate part. Among the vehicles it fits are the 2013-2015 Chevrolet Malibu and the 2011-2017 Buick Regal, and it is also a brake caliper for the 2012-2016 Buick LaCrosse; the front left takes one on each.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Piston diameter: 60 mm (2.36 in)
- Piston quantity: 1
- Inlet fitting: banjo bolt, M10 - 1.5 thread (port thread M10-1.5 x 23.14 mm)
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: floating
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One front left brake caliper with its mounting bracket, caliper slides, caliper and pad hardware, dust boots, bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors, bracket mounting bolts and the mounting bolt are not included, so plan on new bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1125
Frequently Asked Questions
Is this a Chevy Malibu brake caliper that fits the 2013-2015 Chevrolet Malibu?
Yes. Nugeon 99-17433A is a front left caliper for the 2013-2015 Chevrolet Malibu. If your car is not named here, the "Vehicles it fits" section lets you check it by year and model.
Can I use this as a Buick Regal brake caliper on the front left of a 2011-2017 Buick Regal?
Yes. Nugeon 99-17433A fits the front left of the 2011-2017 Buick Regal, which takes one caliper per position. The front right is a separate caliper.
Does the Nugeon caliper come with brake pads?
No. It comes with the bracket, slides, caliper and pad hardware, dust boots, bleeder screw with cap and crush washers, but not pads, shims, wear sensors or mounting bolts.
What size piston does this floating caliper have?
This front left caliper has one steel piston, 60 mm (2.36 in) in diameter, and a banjo bolt inlet with an M10 - 1.5 thread.
How can I tell if a front left caliper is sticking or leaking?
A pull to one side under braking, uneven pad wear, or brake fluid on or near the caliper can be signs. Have a shop inspect it promptly, since it is part of the brakes.
