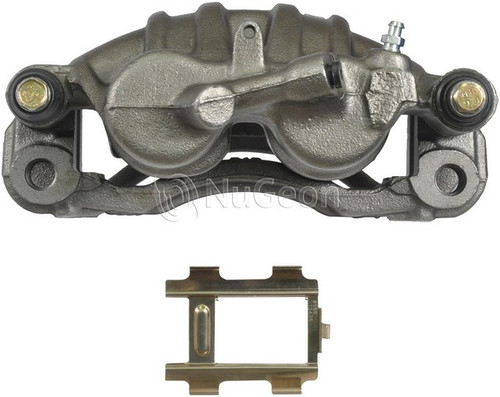

Nugeon 99-17710B left brake caliper for the 2003-2006 Dodge Sprinter 3500 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design for the front left and rear left positions.
A fluid leak at the dust boot, a pull to one side when braking or a dragging wheel can point to a caliper problem. As a first check, during a brake service and with the engine off, look over the boot and pads for wet fluid or uneven wear; a shop can test the rest. If the caliper is the cause, this one replaces it.
This floating caliper is a direct-fit replacement for the 2003-2006 Dodge Sprinter 3500, the 2002-2006 Freightliner Sprinter 3500 and the 2005-2006 Dodge Sprinter 2500. If your vehicle is not named here, look it up on the Buyer's Guide tab. This listing is one caliper for the left side; the 2003-2006 Dodge Sprinter 3500 takes one on this side, the right side is a separate part, and both sides are normally replaced together.
Fit and size
Build and materials
One remanufactured brake caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washer. Brake pads, anti-squeal shims, caliper and pad hardware, wear sensors, the bleeder screw cap, the bracket mounting bolts and the mounting bolt are not included; plan on new bolts, since the old ones may not be reusable.
Does the Nugeon 99-17710B fit the 2002-2006 Freightliner Sprinter 3500?
Yes. Nugeon 99-17710B is a left-side caliper for the front left and rear left positions of the 2002-2006 Freightliner Sprinter 3500. For any other vehicle, use the Buyer's Guide tab.
Does this Nugeon caliper include brake pads?
No. This listing is one remanufactured caliper with its bracket, slides, dust boots, bleeder screw and crush washer. Brake pads are sold separately.
What piston size does this disc brake caliper have?
This caliper has two steel pistons, each 45 mm (1.772 in) in diameter. The bleeder screw and the inlet port both use M10-1.0 threads.
Are the bracket mounting bolts included with the Nugeon 99-17710B?
No. The bracket mounting bolts and the mounting bolt are not included with Nugeon 99-17710B. Plan on new bolts, since the old ones may not be reusable.
Which cast numbers does this caliper housing and bracket carry?
The housing carries cast number 231 and the bracket carries cast number 214. The housing is cast iron with a rust-preventative finish.
