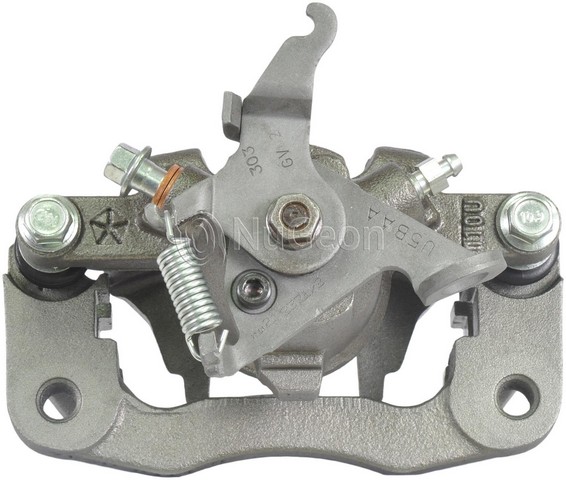

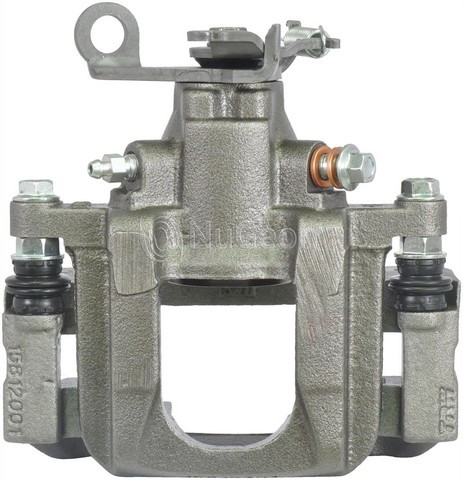

Nugeon 99-17749B rear left brake caliper for the 2009-2013 Dodge Journey clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is also called a disc brake caliper.
- Floating caliper with one steel piston, 43 mm (1.69 in) across
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting with M10 - 1.0 thread
Quick facts
- Part: Nugeon 99-17749B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2013 Dodge Journey
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
Uneven pad wear on that wheel, a pull to one side or brake fluid around the caliper can mean a caliper that is sticking or leaking. Those signs alone do not prove the caliper is at fault, because a worn brake hose is another common source.
Fits
This 2009-2013 Dodge Journey brake caliper is a direct-fit replacement for the rear left side, and this side takes one caliper. Rear calipers are normally replaced in pairs, but this listing is a single caliper; the rear right is a separate part.
Specifications
Fit and size
- Position: rear left
- Quantity per vehicle: 1 (this side)
- Piston outside diameter: 43 mm (1.69 in)
- Piston quantity: 1
- Inlet fitting: banjo bolt, M10 - 1.0 thread
- Bleeder screw thread: M10-1.0

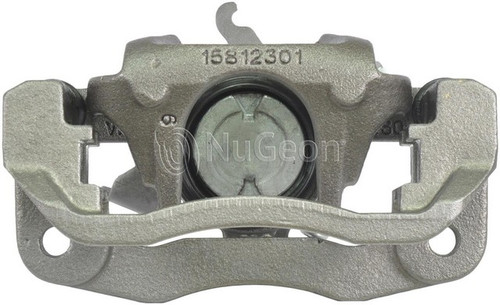

- Housing cast number: 15812301
- Bracket cast number: 15812001
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Housing material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap and a crush washer. Brake pads, anti-squeal shims, wear sensors and the bracket mounting bolts are not included, so plan on new bracket bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1326
Frequently Asked Questions
Is this Nugeon caliper the rear left one for the 2009-2013 Dodge Journey?
Yes, Nugeon 99-17749B is the rear left brake caliper for the 2009-2013 Dodge Journey; the rear right side is a separate part.
Does this rear left caliper include its bracket and slides?
Yes, it comes with the mounting bracket, caliper slides, dust boots, bleeder screw and cap, crush washer and caliper and pad hardware. Brake pads, shims, wear sensors and bracket bolts are not included.
What size is the piston on this rear left brake caliper?
Nugeon 99-17749B has one steel piston, 43 mm (1.69 in) in outside diameter, on a floating caliper with an M10-1.0 bleeder screw.
How can I tell if a rear brake caliper is sticking?
Signs can include a pull to one side, a burning smell after driving or brake fluid around the wheel. A shop can inspect the caliper and pads to confirm the cause, so have it checked promptly.
What thread does the inlet on this caliper use?
The inlet is a banjo bolt fitting with M10 - 1.0 thread, and the bleeder screw is M10-1.0. A crush washer is included.
