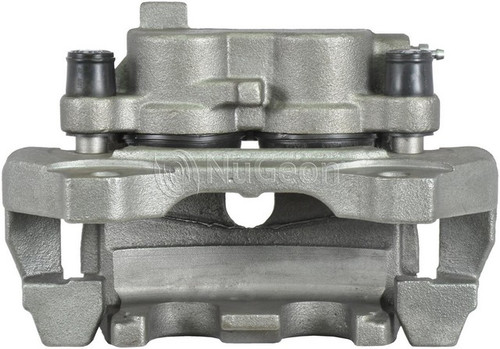

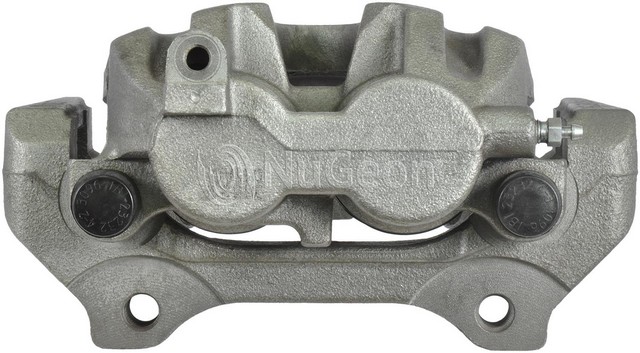

Nugeon 99-17757B front left brake caliper for the 2011-2021 Jeep Grand Cherokee and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured floating caliper is also called a disc brake caliper and has two pistons.
- Floating caliper design with two pistons
- Phenolic pistons with a 48 mm (1.89 in) outside diameter
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 port thread
Quick facts
- Part: Nugeon 99-17757B brake caliper
- Also called: disc brake caliper
- Fits: 2011-2021 Jeep Grand Cherokee and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A failing front left caliper can show up as the vehicle pulling to one side, fluid around the caliper or a soft pedal. Before you replace this caliper, rule out worn pads, a damaged brake hose or a sticking slide as the source of the pull or drag.
Fits
This is a caliper for the 2011-2021 Jeep Grand Cherokee and also fits the 2011-2025 Dodge Durango. The 2011-2025 Dodge Durango takes one on this side. This listing is one caliper for the front left, so the front right is ordered separately, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Piston outside diameter: 48 mm (1.89 in)
- Piston quantity: 2
- Inlet port thread: M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0
Build and materials
- Condition: Remanufactured
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Inlet fitting: Banjo bolt
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts, since old ones may not be reusable.
Interchange / FMSI:
FMSI: D1455
Frequently Asked Questions
Is this a 2011-2025 Dodge Durango brake caliper for the front left?
Yes. Nugeon 99-17757B goes on the front left of the 2011-2025 Dodge Durango. The front right side is a separate caliper.
Does this Nugeon brake caliper come with brake pads?
No. Pads, anti-squeal shims and wear sensors are not included. The caliper comes with its bracket, slides, dust boots, hardware, bleeder screw and cap, and crush washers.
What size are the pistons in this front left brake caliper?
Nugeon 99-17757B has two phenolic pistons with a 48 mm (1.89 in) outside diameter. It is a floating caliper with a banjo bolt inlet.
Can I keep driving with a leaking front left brake caliper?
No. A fluid leak at a caliper affects braking, so have it checked or replaced promptly rather than driving on it.
Are bracket bolts included with this Nugeon caliper?
No. Nugeon 99-17757B does not include the bracket mounting bolts or the mounting bolt, so plan on new ones; old bolts may not be reusable.
