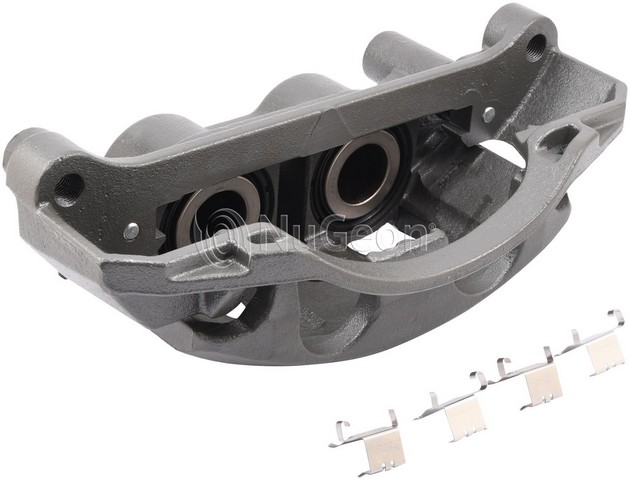

TERREPOWER 99P00645A front right brake caliper for the 2016-2024 Nissan Titan XD and other vehicles clamps the pads against the rotor. This is a remanufactured caliper.
- Floating caliper body with two pistons
- Pistons made of phenolic
- Cast iron housing with an E-coated finish
- Banjo-bolt inlet fitting
Quick facts
- Part: TERREPOWER 99P00645A brake caliper
- Also called: disc brake caliper
- Fits: 2016-2024 Nissan Titan XD and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the vehicle pulling to one side, fluid around the caliper or one pad wearing faster than the other. Before you replace this caliper, rule out a worn brake hose, stuck slides or worn pads, which can also pull a vehicle or wear pads unevenly.
Fits
The 2016-2024 Nissan Titan XD, the 2012-2021 Nissan NV1500 and the 2012-2021 Nissan NV2500 all fit this caliper, as do other vehicles, and each takes one at this position. This listing is one caliper for the front right wheel; the front left caliper on that axle is a separate part, and both are normally replaced at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Caliper type: Floating
- Piston quantity: 2
- Piston diameter: 57 mm (2.24 in)
- Inlet port thread: M10-1.0 x 27.32 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Condition: Remanufactured
- Casting material: Cast iron
- Piston material: Phenolic
- Finish: E-coated
- Housing and bracket cast number: 5713
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, a bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included, so plan on new bracket bolts.
Interchange / FMSI:
FMSI: D1565
Frequently Asked Questions
Does the TERREPOWER 99P00645A caliper fit the 2016-2024 Nissan Titan XD?
Yes, TERREPOWER 99P00645A is the front right caliper for the 2016-2024 Nissan Titan XD, the 2012-2021 Nissan NV1500 and NV2500. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section.
Does this front right brake caliper come with its bracket and slides?
Yes, it includes the mounting bracket, caliper slides, dust boots, caliper and pad hardware, a bleeder screw with cap and crush washers. Pads, anti-squeal shims, wear sensors and bracket bolts are not included.
How large are the pistons on the TERREPOWER 99P00645A?
The TERREPOWER 99P00645A has two phenolic pistons, each 57 mm (2.24 in) in diameter, in a floating caliper body.
Is this front right disc brake caliper remanufactured or new?
It is remanufactured. The housing is cast iron with an E-coated finish, and the country of origin is Mexico.
What thread does the bleeder screw on this caliper use?
The bleeder screw is M10-1.0, and a cap comes with it. The inlet port for the banjo bolt is M10-1.0 x 27.32 mm.
