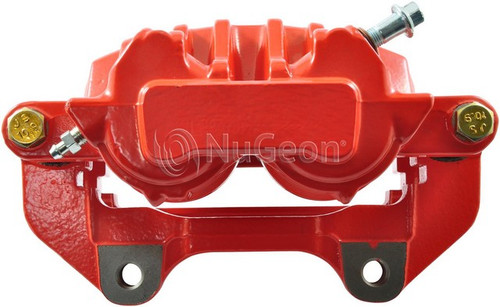

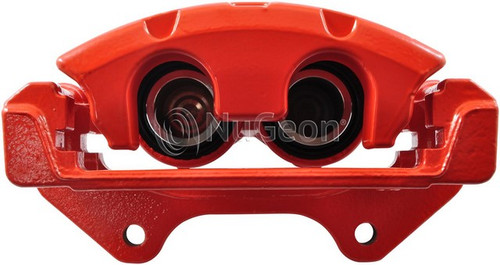

Nugeon 99R17369A front left brake caliper for the 2005-2008 Pontiac Grand Prix clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper has a powder-coated finish.
- Floating caliper design with two pistons
- Steel pistons, each 45 mm (1.772 in) in diameter
- Aluminum caliper casting
- Banjo bolt inlet fitting with an M10-1.0 x 27.32 port thread
Quick facts
- Part: Nugeon 99R17369A brake caliper
- Also called: disc brake caliper
- Fits: 2005-2008 Pontiac Grand Prix
- Position: Front left
- Condition: Remanufactured
A worn or failing disc brake caliper can show up as a pull to one side, a brake fluid leak or a brake that drags. Before you replace it, rule out a worn pad, a damaged brake hose or a bent rotor, since each of those has its own effect on pulling and drag.
Fits
It fits the 2005-2008 Pontiac Grand Prix.
Specifications
Fit and size
- Position: front left
- Quantity for this side: 1
- Piston diameter: 45 mm (1.772 in)
- Piston quantity: 2
- Inlet fitting: banjo bolt, M10-1.0 x 27.32 port thread
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: floating
- Casting material: aluminum
- Piston material: steel
- Finish: powder coated, red
- Housing cast number: K247-113C
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, the bleeder screw cap, mounting bolts, bracket mounting bolts, caliper and pad hardware and wear sensors are not included. Plan on new mounting bolts, since the old ones may not be reusable. This listing is one front left caliper, and that side takes one; the front right is its own part, and the two sides are normally replaced together.
Frequently Asked Questions
Will this brake caliper for the 2005-2008 Pontiac Grand Prix fit the left front?
Yes. Nugeon 99R17369A is the front left caliper for the 2005-2008 Pontiac Grand Prix; the front right side is a separate part and is ordered separately.
Does this Nugeon caliper come with brake pads?
No, Nugeon 99R17369A comes with its bracket, slides, dust boots, bleeder screw and crush washers, but pads, anti-squeal shims and bracket mounting bolts are not included.
What size are the pistons and the bleeder thread on this brake caliper?
The caliper has two steel pistons, each 45 mm (1.772 in) across, and an M10-1.0 bleeder screw thread. The banjo bolt inlet has an M10-1.0 x 27.32 port thread.
How can I tell if a front left brake caliper is going bad?
During a brake service, one pad worn faster than the other, or a burning smell after driving, can be signs of a failing caliper. Because this is a brake part, have it checked promptly.
Is Nugeon 99R17369A a floating caliper, and what is it made of?
Yes. It is a floating caliper with an aluminum casting, steel pistons and a powder-coated finish, and it is a remanufactured part.
