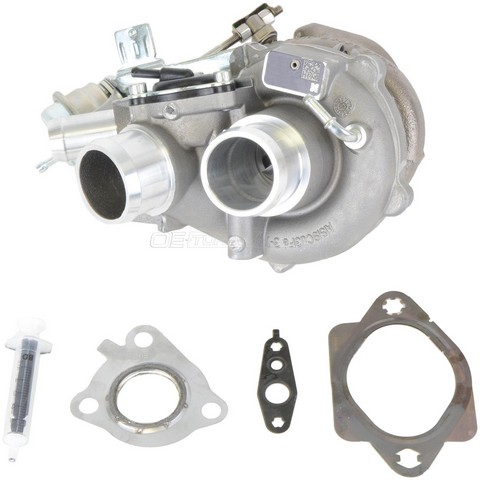

TERREPOWER G1016 left turbocharger for the 2011-2012 Ford F-150 V6 3.5L is a remanufactured unit that uses exhaust energy to force extra air into the engine.
- Precisely calibrated remanufactured high-performance turbocharger
- Journal bearing with a water-cooled center housing
- Fixed-geometry turbine with a pneumatic wastegate
- Built for the durability, reliability and technology demands of complex engines
Quick facts
- Part: TERREPOWER G1016 turbocharger
- Fits: 2011-2012 Ford F-150 V6 3.5L
- Position: Left
- Material: Housing matched to OE
- Condition: Remanufactured
A weak turbocharger can show up as sluggish acceleration, a whining noise from the engine bay or oil around the turbo. Before you replace the turbocharger, rule out a boost leak, a sticking wastegate and a restricted oil feed, because each of those can also produce a loss of power.
Fits
This is a direct-fit 2011-2012 Ford F-150 turbocharger for the left side of the V6 3.5L engine. The right side is a separate part.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1 for this side
- Compressor inlet outside diameter: 46 mm (1.81 in)
- Compressor outlet outside diameter: 46 mm (1.81 in)
Build and materials
- Condition: Remanufactured
- Bearing type: Journal
- Center housing cooling: Water cooled
- Turbine type: Fixed geometry
- Wastegate type: Pneumatic
- Housing material: Matched to OE
- Original equipment specifications: Meets or exceeds
- Country of origin: United States
In the box
One left turbocharger with its wastegate actuator, mounting bracket, mounting hardware and a gasket or seal. The 2011-2012 Ford F-150 V6 3.5L takes one on this side. The oil supply line is not included.
Installation notes
- Replace the oil feed line filter per your vehicle manufacturer's instructions.
- Turbocharger exhaust housing support brackets are not required for installation.
Interchange: BL3E-9G438-UA · BL3E-9G438-UB · BL3Z-6K682-C · BL3Z-6K682-E · CL3E-6C879-AA · CL3Z-6K682-A · CL3Z-6K682-C
This part cross-references / interchanges with the following part numbers:
BL3E-9G438-UA, BL3E-9G438-UB, BL3Z-6K682-C, BL3Z-6K682-E, CL3E-6C879-AA, CL3Z-6K682-A, CL3Z-6K682-C
Frequently Asked Questions
Does the TERREPOWER G1016 turbocharger fit the 2011-2012 Ford F-150 V6 3.5L?
Yes. TERREPOWER G1016 is the left-side turbocharger for the 2011-2012 Ford F-150 V6 3.5L, and that side takes one.
Is the oil supply line included with this left turbocharger?
No. The oil supply line is not included. The turbocharger comes with its wastegate actuator, mounting bracket, mounting hardware and a gasket or seal.
What bearing type does the TERREPOWER G1016 use?
TERREPOWER G1016 uses a journal bearing with a water-cooled center housing. The turbine is fixed geometry, and the wastegate is pneumatic.
Do I need to replace the oil feed line filter when installing this turbocharger?
Yes, replace the oil feed line filter per your vehicle manufacturer's instructions; exhaust housing support brackets are not required for installation.
Is this turbocharger new or remanufactured, and where does it come from?
It is remanufactured and precisely calibrated, and it meets or exceeds OEM specs. Its country of origin is the United States.
