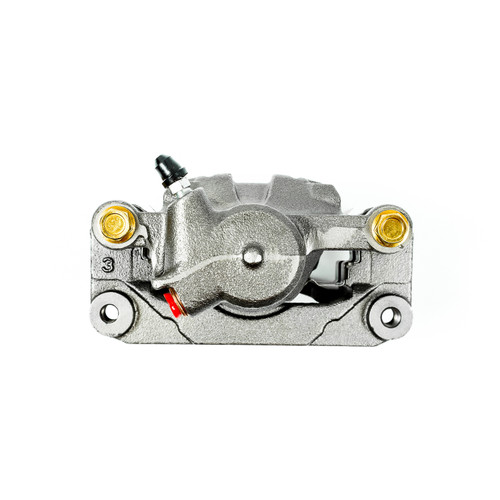

PowerStop L3424 rear right brake caliper for the 2009-2013 Subaru Forester and other vehicles clamps the brake pads against the rotor to slow the wheel. It replaces the stock rear right caliper with a floating, single-piston unit that comes with its bracket.
- Autospecialty by PowerStop replacement caliper line
- Steel piston, 38.07 mm in diameter
- New seals, guide pins and bleeder screws
- High-temperature EPDM rubber dust boots
- 100% pressure tested and inspected
Quick facts
- Part: PowerStop L3424 brake caliper
- Also called: disc brake caliper
- Fits: 2009-2013 Subaru Forester and other vehicles
- Position: Rear right
- Material: Cast iron casting, steel piston
- Condition: New
A sticking disc brake caliper can show up as the car pulling to one side, a dragging or burning smell from one wheel, or pads worn unevenly. Worn pads, a tired rotor or a collapsed brake hose can be behind those signs too, so track down the cause before you buy a caliper.
Fits
Besides the 2009-2013 Subaru Forester, it works as a 2008-2014 Subaru Impreza brake caliper and a 2012-2021 Subaru WRX brake caliper. Each car takes one for the rear right. This listing is one caliper; the rear left side is a separate part, and both rear calipers are normally replaced together.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 38.07 mm
- Bleeder screw hex size: 10 mm
Build and materials
- Caliper type: Floating, with bracket
- Configuration: Two-piece
- Casting material: Cast iron
- Piston material: Steel
- Integrated parking brake: No
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One rear right caliper with bracket, caliper slides, crush washers and stainless-steel abutment hardware clips. Brake pads, mounting bolts, caliper grease and a pad wear sensor are not included, so plan on new mounting bolts.
Installation notes
- Bolt-on ready, no modifications necessary.
- Assembled with lubricant for smooth caliper operation.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the Subaru Forester brake caliper replacement for a 2009-2013 model year?
Yes. PowerStop L3424 is listed for the 2009-2013 Subaru Forester as a direct-fit replacement.
Which side is this caliper for on a 2009-2013 Subaru Forester?
This caliper goes on the rear right. The rear left takes its own caliper, ordered separately.
Do PowerStop brake calipers like the L3424 come with new seals and hardware?
Yes. PowerStop L3424 is assembled with new seals, guide pins, dust boots, bleeder screws and stainless-steel abutment hardware clips. Brake pads, mounting bolts and caliper grease are not included.
How big is the piston on this rear right caliper?
The piston is steel and 38.07 mm in diameter. The caliper is a floating design with one piston.
Do I need to modify anything to install this rear right caliper?
No. It is bolt-on ready with no modifications necessary. Have mounting bolts and brake pads on hand, since neither comes with it.
