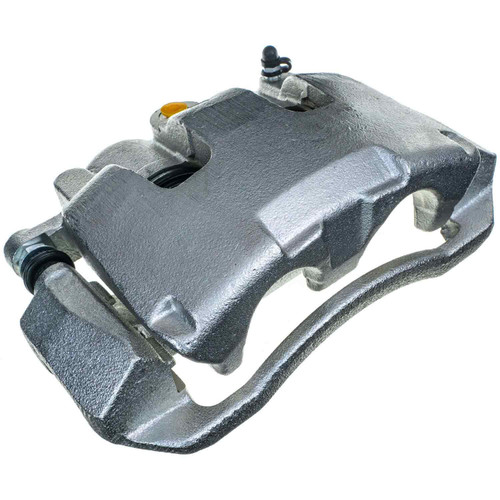

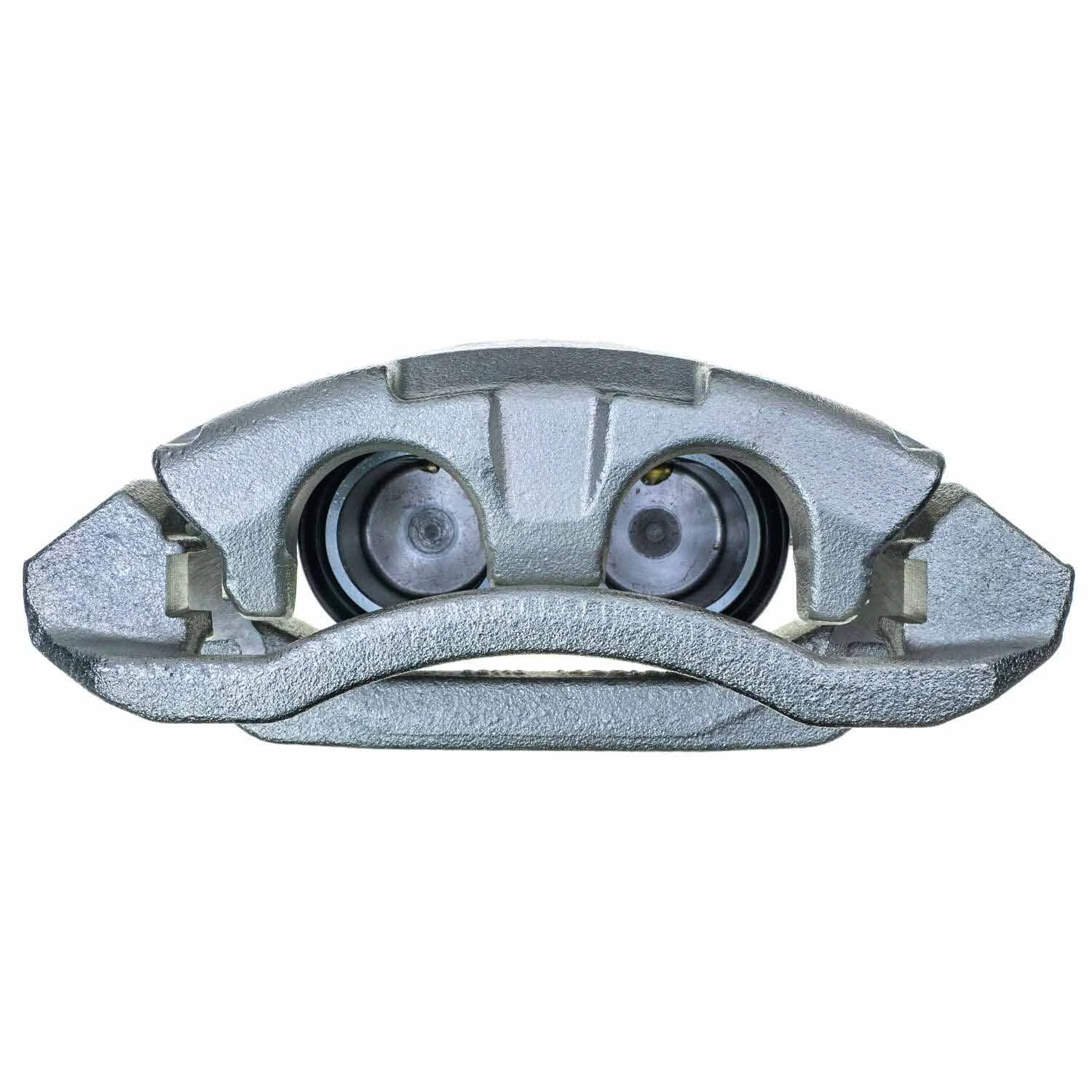

PowerStop L5008 front right brake caliper for the 2006-2008 Dodge Ram 1500 and other vehicles squeezes the pads against the rotor to slow the wheel. Pedal pressure moves brake fluid into the caliper, where its pistons apply the clamping force.
- Autospecialty by PowerStop replacement caliper line, floating design with two steel pistons
- Bolt-on ready, with no modifications necessary
- Assembled with new seals, guide pins, dust boots and a bleeder screw
- High-temperature EPDM rubber dust boots
- Assembly lubricant for smooth caliper operation and durability in harsh conditions
- 100% pressure tested and inspected
Quick facts
- Part: PowerStop L5008 brake caliper
- Also called: disc brake caliper
- Fits: 2006-2008 Dodge Ram 1500 and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: New
A worn or sticking caliper can show up as the vehicle pulling to one side when you brake, a brake that seems to drag, or fluid seeping around the caliper. Before you replace the caliper, rule out a collapsed brake hose, worn pads or a damaged rotor, since any of those can pull a vehicle to one side or leave a brake dragging too.
Fits
This is a direct replacement brake caliper for the 2006-2008 Dodge Ram 1500, the 2005-2008 Dodge Dakota and the 2006-2009 Mitsubishi Raider. The listing is one caliper for the front right; the front left is a separate part ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 for this side
- Piston quantity: 2
- Piston diameter: 53.85 mm
- Bleeder screw quantity: 1
Build and materials
- Caliper type: floating
- Caliper casting material: cast iron
- Piston material: steel
- Integrated parking brake: no
- Condition: new
- Country of origin: China
In the box
One front right brake caliper. Brake pads, mounting bracket, mounting hardware, mounting bolts and caliper grease are not included, so plan on new bolts and hardware rather than reusing the old ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Are PowerStop brake calipers like the L5008 sold with pads or mounting hardware?
No. The PowerStop L5008 comes with new seals, guide pins, dust boots and a bleeder screw, but not pads, mounting bracket, mounting hardware, bolts or caliper grease.
Does this brake caliper fit the front right side of a 2005-2008 Dodge Dakota?
Yes. PowerStop L5008 is a front right caliper for the 2005-2008 Dodge Dakota. The front left side takes a separate caliper.
How many pistons does this disc brake caliper have?
It has two steel pistons in a floating design. The piston diameter is 53.85 mm.
How can I tell if a front brake caliper is dragging or leaking?
Pulling to one side when braking, a burning smell after driving, or fluid around the caliper can point to a caliper problem. A shop can confirm the cause.
Are the dust boots on this caliper rubber, and is it pressure tested?
Yes. The dust boots are high-temperature EPDM rubber, and each PowerStop L5008 caliper is 100% pressure tested and inspected.
