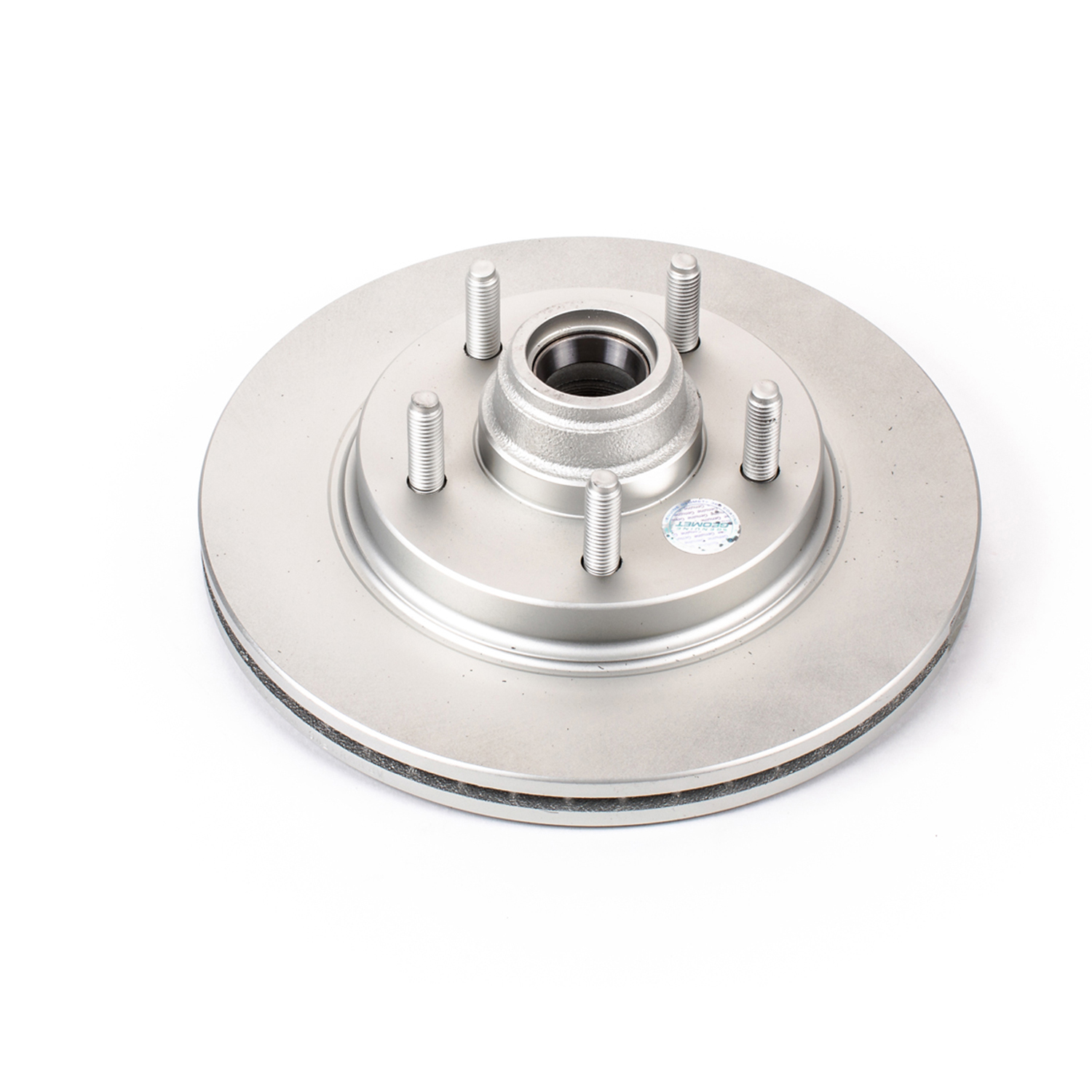

PowerStop AR8583EVC front brake rotor for the 2000-2003 Ford F-150 and other vehicles gives the brake pads a smooth, vented surface to clamp against and slow the wheel. It is a hub/rotor assembly in a full-cast design.

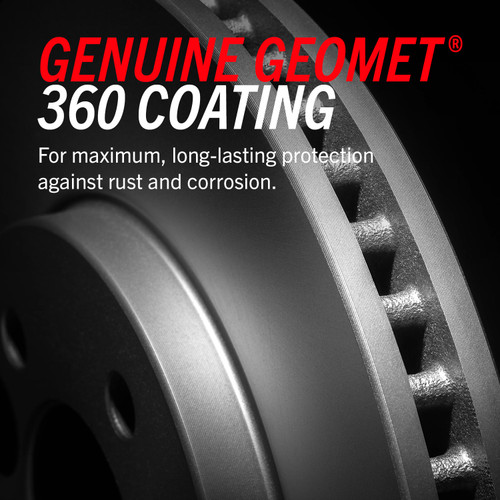

- Fully coated with Genuine GEOMET 360 to protect against rust and corrosion without influencing braking performance
- Manufactured to strict tolerances for DTV and runout for smooth, quiet performance
- 100% dynamic mill balanced
- PowerStop Evolution Coated rotor line
Quick facts
- Part: PowerStop AR8583EVC brake rotor
- Also called: disc brake rotor
- Fits: 2000-2003 Ford F-150 and other vehicles
- Position: Front
- Condition: New
A worn disc brake rotor can show up as brake pedal pulsation, squealing or grinding, or visible grooves, though pads or calipers can produce the same signs. With the engine off and the wheel off for a brake service, look at the rotor face for cracks or grooves and measure its thickness against the discard thickness before replacing it.
Fits
These brake rotors fit the 2000-2003 Ford F-150, the 2004 Ford F-150 Heritage and the 2002 Lincoln Blackwood. Weight and vane count match the original equipment design, with direct original equipment fit and function. The 2000-2003 Ford F-150 takes two front rotors, so order two and fit them together; the 2004 Ford F-150 Heritage and the 2002 Lincoln Blackwood take two as well.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Outside diameter: 308 mm (12.13 in)
- Overall height: 105.70 mm (4.16 in)
- Nominal thickness: 26.00 mm (1.02 in)
- Discard thickness: 24.70 mm (0.97 in)
- Bolt circle: 134.90 mm (5.31 in), 5 lug holes
Build and materials
- Type: vented, full cast
- Surface: smooth
- Coating: Genuine GEOMET 360 rust-resistant coating
- ABS tone ring: included
- Balance: 100% dynamic mill balanced
- Condition: new
- Country of origin: China
In the box
One front brake rotor as a hub/rotor assembly with bearing races included. The bearing is not included.
Installation notes
- Bolt-on replacement, no modifications necessary.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Do these brake rotors for the 2000-2003 Ford F-150 also fit the 2004 Ford F-150 Heritage?
Yes. PowerStop AR8583EVC fits the 2004 Ford F-150 Heritage as well as the 2000-2003 Ford F-150, and each takes two front rotors.
Do these PowerStop front rotors include the wheel bearing?
No. This hub/rotor assembly comes with bearing races, but the bearing itself is not included.
What does the GEOMET 360 coating do on this PowerStop brake rotor?
PowerStop AR8583EVC is fully coated with Genuine GEOMET 360 to protect against rust and corrosion. It is a thin layer that does not influence braking performance.
How thick is this front rotor, and when is it too worn?
Nominal thickness is 26.00 mm (1.02 in) and the discard thickness is 24.70 mm (0.97 in). A rotor measured at the discard thickness or below needs to be replaced.
What bolt circle and size does this front brake rotor have?
It has 5 lug holes on a 134.90 mm (5.31 in) bolt circle, with a 308 mm (12.13 in) outside diameter.
