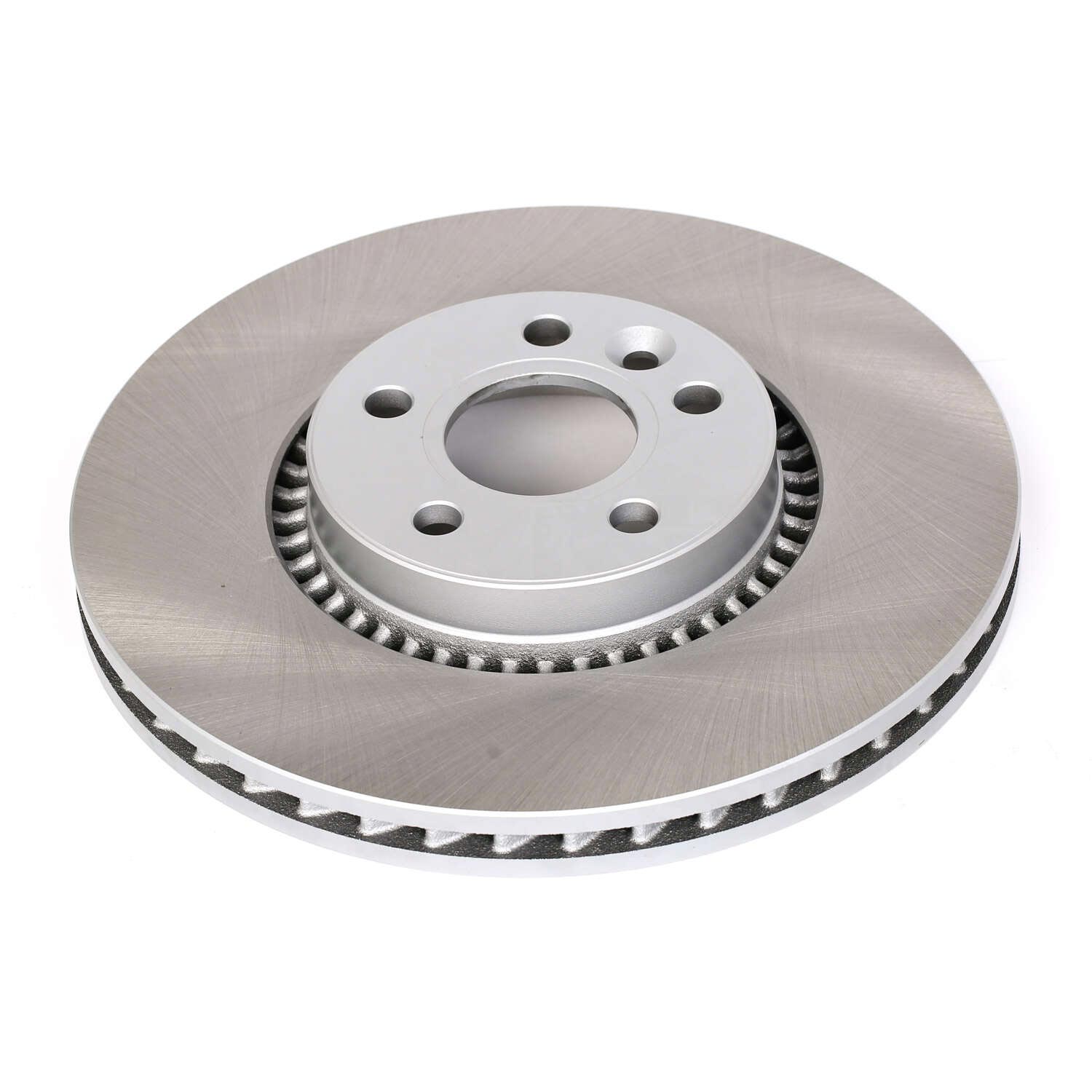

PowerStop EBR1001SCR front brake rotor for the 2011-2018 Volvo S60 and other vehicles gives the brake pads a surface to grip when you slow down. This vented, full-cast disc brake rotor is partially coated to help keep a clean look behind alloy wheels.
- PowerStop Coated Hat and Edge Rotor: silver epoxy coating on the hat, outer edge and vanes, the areas prone to corrosion
- Made to strict tolerances for DTV and runout for smooth, quiet performance
- Cross-hatched friction surface for pad break-in
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop EBR1001SCR brake rotor
- Also called: disc brake rotor
- Fits: 2011-2018 Volvo S60 and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, shaking through the steering wheel when you brake, or visible grooves on the rotor face can mean this rotor is worn, though worn pads or a sticking caliper can be behind them as well.
Fits
The 2011-2018 Volvo S60, the 2016-2018 Volvo S60 Cross Country and the 2015-2018 Volvo V60 are among the vehicles this rotor fits. It bolts on directly with no modifications, and its weight and vane count match the original equipment design. If your car is not one of those, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 316 mm (12.44 in)
- Bolt circle: 108 mm (4.25 in), 5 lug holes
- Nominal thickness: 28 mm (1.10 in)
- Discard thickness: 26 mm (1.02 in)
- Overall height: 52 mm (2.05 in)
Build and materials
- Type: Vented, full cast
- Coating: Silver epoxy on hat, outer edge and vanes
- Balancing: 100% dynamic mill balanced
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One brake rotor, sold individually. The front axle takes two, so order two and fit them together.
Frequently Asked Questions
Will these Volvo S60 brake rotors fit a 2011-2018 Volvo S60?
Yes. PowerStop EBR1001SCR is a front rotor for the 2011-2018 Volvo S60, and it also fits other vehicles listed in the "Vehicles it fits" section.
Does this listing include PowerStop brake pads and rotors?
No. This listing is one PowerStop EBR1001SCR front brake rotor, sold individually. Brake pads are sold separately and are not part of it.
Are PowerStop front rotors like this one vented or solid?
This one is vented and full cast, with a 316 mm (12.44 in) outside diameter and a nominal thickness of 28 mm (1.10 in).
What is the discard thickness of this front rotor?
The discard thickness is 26 mm (1.02 in), against a nominal 28 mm. A rotor measured at or below 26 mm needs replacing, and a shop can measure it.
What does the cross-hatched surface do when PowerStop rotors and pads are fitted together?
The cross-hatched friction surface on this PowerStop EBR1001SCR rotor is there to help new pads break in.
