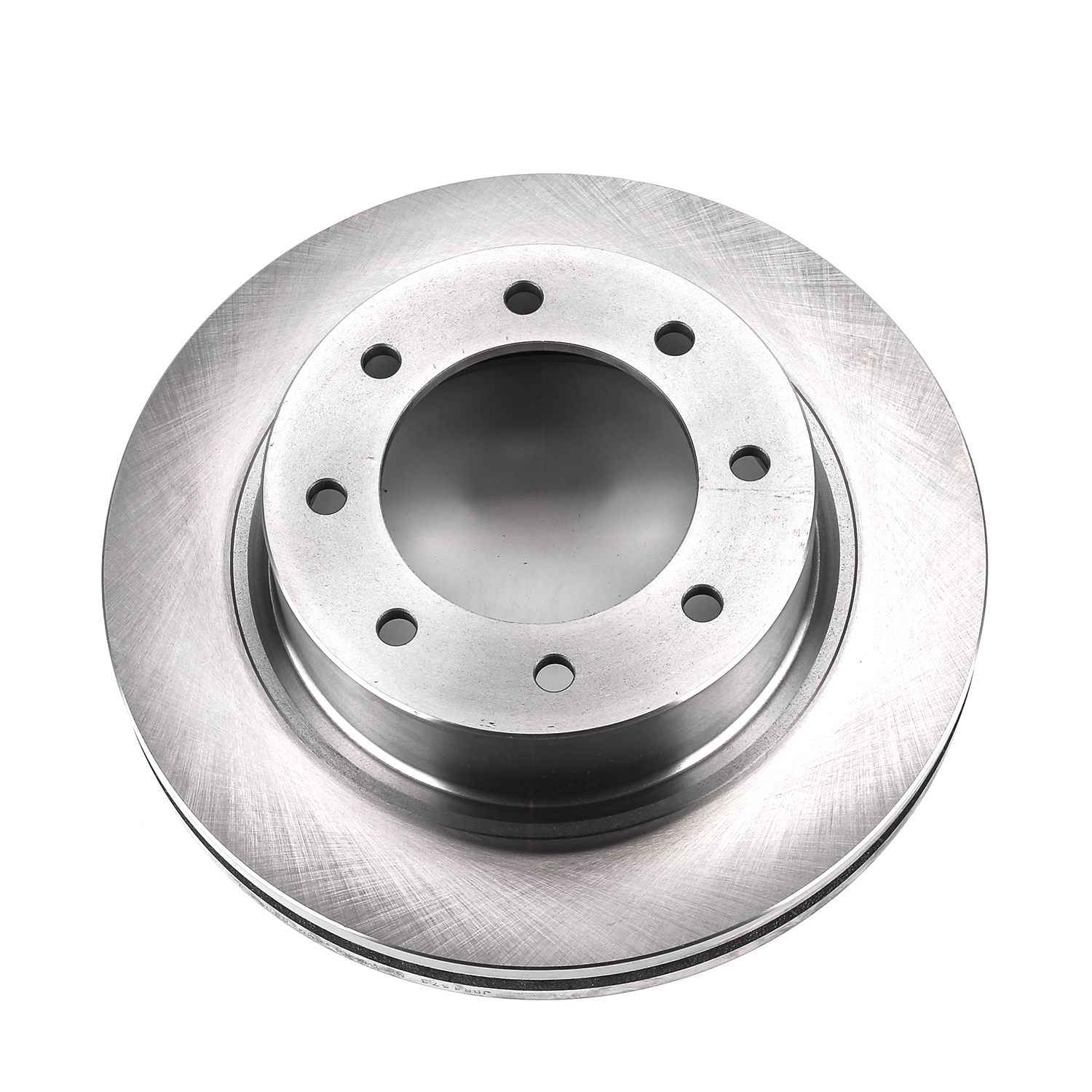

PowerStop JBR1573 front brake rotor for the 2012-2021 Nissan NV1500 and other vehicles gives the pads a friction surface to clamp against. The vented disc turns with the wheel and helps carry braking heat away.
- AutoSpecialty line, Standard Replacement grade
- Bolt-on design, no modifications necessary
- Strict tolerances for DTV and runout for smooth, quiet performance
- Cross-hatched finish on the friction surface for pad break-in
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop JBR1573 brake rotor
- Also called: disc brake rotor
- Fits: 2012-2021 Nissan NV1500 and other vehicles
- Position: Front
- Condition: New
Pedal pulsation, a grinding or squealing noise, or visible grooves and cracks can mean a disc brake rotor is worn. Before you replace the rotors, rule out worn pads or a sticking caliper, since those can produce noise and vibration as well.
Fits
It fits the 2012-2021 Nissan NV1500, the 2012-2021 Nissan NV2500 and the 2012-2021 Nissan NV3500. These PowerStop front rotors go two to a vehicle, one on each side of the axle, and this listing is one rotor; the other side of that axle is normally done at the same time. The rotor has direct original equipment fit and function, with weight and vane count that match the original equipment design.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Sold individually: 1 rotor per listing
- Outside diameter: 360.00 mm (14.17 in)
- Bolt circle: 165.30 mm, 8 lug holes
- Nominal thickness: 38.00 mm (1.50 in)
- Discard thickness: 36.50 mm (1.44 in)
- Overall height: 96.00 mm (3.78 in)
Build and materials
- Type: Vented
- Construction: Full cast
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor. An ABS tone ring is not included.
Frequently Asked Questions
Is the PowerStop JBR1573 rotor right for the 2012-2021 Nissan NV2500?
Yes. PowerStop JBR1573 is a front rotor listed for the 2012-2021 Nissan NV2500, and the front axle takes two, one on each side.
What do I get with these PowerStop brake pads and rotors listing?
This listing is one front rotor only. Brake pads are sold separately, and an ABS tone ring is not included.
What is the cross-hatched face for when I pair PowerStop rotors and pads?
The cross-hatched finish on the friction surface is there for pad break-in, so new pads can bed in against it.
When is a PowerStop JBR1573 rotor worn out?
The PowerStop JBR1573 has a discard thickness of 36.50 mm (1.44 in); a new one measures 38.00 mm (1.50 in). During a brake service, a rotor at or below discard thickness is due for replacement.
Is this front rotor vented or solid, and how many lug holes does it have?
It is a vented, full-cast rotor with 8 lug holes on a 165.30 mm bolt circle and a 360.00 mm (14.17 in) outside diameter.
