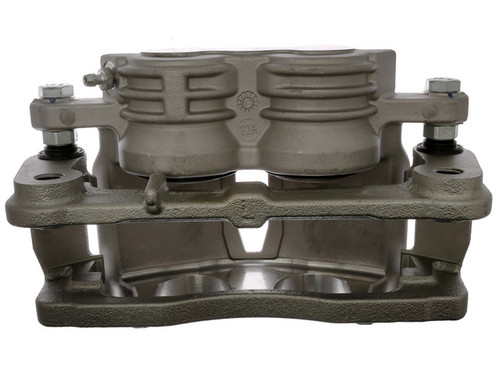

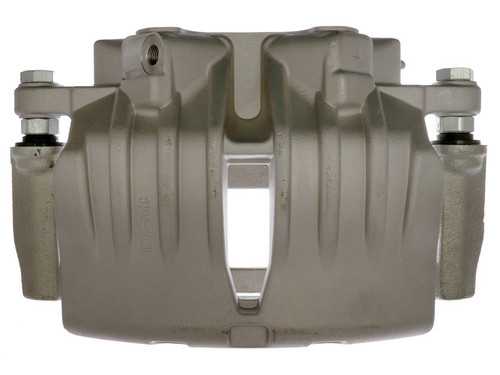

Bring new, precision-engineered braking components to the front left wheel with the Raybestos Element3 FRC11237N brake caliper and bracket assembly, which presses the brake pads against the rotor each time you apply the pedal. It fits many vehicles, among them the 2003-2005 Chevrolet SSR, 2002-2005 Chevrolet Trailblazer EXT and 2002-2005 GMC Envoy XL (all engines). See the Buyer's Guide tab for the full list.
Raybestos designed its Element3 line of new calipers for quality-driven customers. The line covers popular applications and applications with high replacement rates. This semi-loaded unit comes as a caliper and bracket assembly.
A caliper may need replacing if the vehicle pulls to one side under braking, brake fluid leaks at the caliper, the pads wear unevenly or a brake drags. Diagnose the cause before replacing parts. This assembly is cataloged for the front left position, and the listed applications use one. It is sold individually, and replacing the calipers on both sides of the axle together is recommended for even, balanced braking. Bleed the brake system as directed by the vehicle service information after installation. Country of origin: China.
Interchange: 99-17353A · 18-B4798 · 18-P4798 · 141.66034 · 141.66036 · SC1117-1 · 99-17319A · 21-4240 · 10-4300S · 11-21163A-1
9917353A · 18B4798 · 18P4798 · 14166034 · 14166036 · SC11171 · 9917319A · 214240 · 104300S · 1121163A1 · 88964428
This part cross-references / interchanges with the following part numbers:
Which vehicles does this disc brake caliper fit?
It fits many vehicles, including the 2003-2005 Chevrolet SSR, 2002-2005 Chevrolet Trailblazer EXT and 2002-2005 GMC Envoy XL. Check the Buyer's Guide tab to confirm your vehicle.
Which side of the vehicle does it install on?
It is cataloged for the front left position. It is sold individually, and replacing the calipers on both sides of the axle together is recommended for balanced braking.
What are the key specifications?
It is a floating caliper with an aluminum casting, a 45 mm (1.772 in) piston, an M10x1 bleeder screw thread and 14 mm bracket mounting holes with a 2.0 mm thread pitch.
What comes in the box?
This is a semi-loaded caliper and bracket assembly, so the caliper comes with its mounting bracket. The listed applications use one.
What signs suggest a caliper may need replacing?
Common signs include pulling to one side under braking, brake fluid leaking at the caliper, uneven pad wear or a dragging brake. Diagnose the cause before replacing parts.
