Raybestos Brakes Disc Brake Caliper FRC11764N

Raybestos Brakes Disc Brake Caliper FRC11764N - view 2

Raybestos Brakes Disc Brake Caliper FRC11764N - view 3

Raybestos Brakes Disc Brake Caliper FRC11764N - view 4

Raybestos Brakes Disc Brake Caliper FRC11764N - view 5

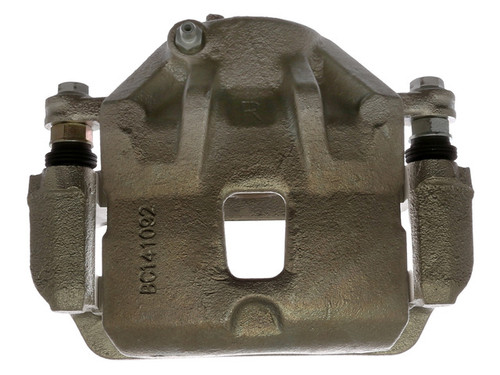

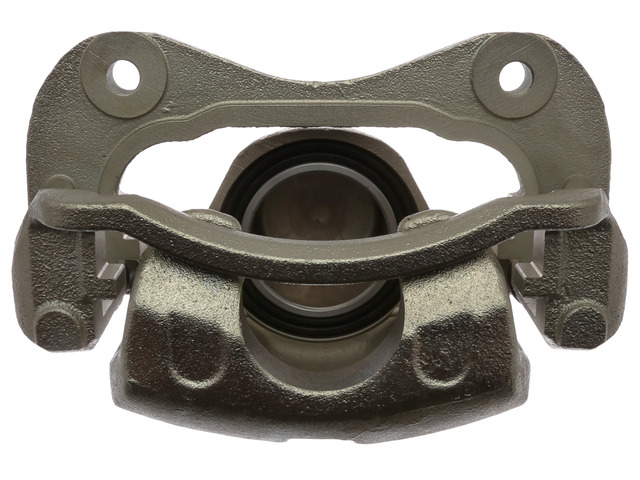

Raybestos Brakes Disc Brake Caliper P/N:FRC11764N

Be the first to review this product

$78.99

MPN: FRC11764N

UPC: 887213212334

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC11764N

$78.99

Description

Put a brand-new clamping unit back at the front right wheel with the Raybestos Element3 FRC11764N Disc Brake Caliper and Bracket Assembly, a direct-fit replacement for the 2005-2009 Hyundai Tucson and the 2005-2010 Kia Sportage, all engines. This new semi-loaded unit supplies the caliper together with its mounting bracket. The Element3 line is made for quality-driven customers and covers many applications, including popular ones with high replacement rates.

OE-engineered design: Precision engineered to meet OE performance and durability.
Zinc plating: The cast iron housing and bracket are zinc-plated for strong corrosion resistance in harsh conditions.
Tested surface finish: Meets ASTM B-117 test standards for 96-hour salt spray corrosion resistance.
Newly manufactured materials: Built from 100% new components.

This is a floating caliper, which uses hydraulic pressure to press the brake pads against the rotor. It has a 2.358 in (59.9 mm) piston diameter, an M10x1 bleeder screw thread, and bracket mounting holes of 12 mm with a 1.25 mm thread pitch. The listed applications use one caliper at the front right position. After installation, bleed the brake system as the vehicle service information directs. Country of origin: China.

Interchange: 99-00829B · 19-2997 · 19-B2997 · 19-P2997 · 141.51233 · 99-00852B · 10-6315S
9900829B · 192997 · 19B2997 · 19P2997 · 14151233 · 9900852B · 106315S · SC2425

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

99-00829B, 19-2997, 19-B2997, 19-P2997, 141.51233, SC2425, 99-00852B, 10-6315S

Frequently Asked Questions

Will this work as a front right Tucson brake caliper replacement?

Yes. FRC11764N is a direct-fit front right caliper and bracket assembly for the 2005-2009 Hyundai Tucson, all engines. See the Buyer's Guide tab for full fitment details.

Does it also fit the Kia Sportage?

Yes. It is listed for the front right position on the 2005-2010 Kia Sportage, all engines.

What is included with FRC11764N?

You get one new semi-loaded caliper and bracket assembly for the front right position. The mounting bracket is supplied with the caliper.

What are the caliper's key specifications?

It is a floating caliper with a 2.358 in (59.9 mm) piston diameter and an M10x1 bleeder screw thread. The bracket mounting holes are 12 mm with a 1.25 mm thread pitch.

What signs suggest a caliper may need replacing?

Brake fluid leaking at the caliper, the vehicle pulling to one side, a dragging brake or uneven pad wear can be signs of a caliper problem. Diagnose the cause before replacing parts.
