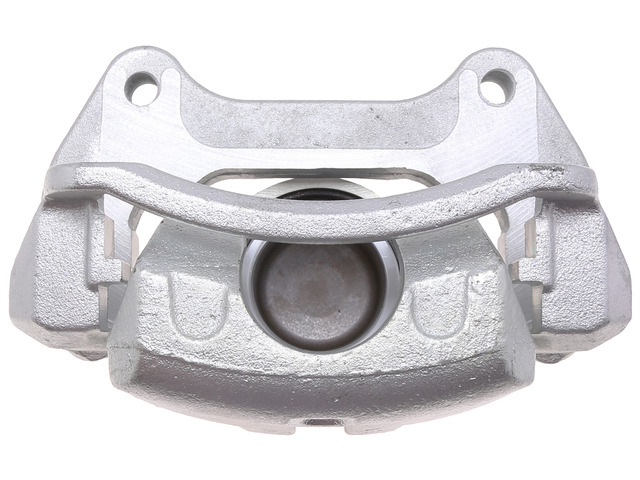

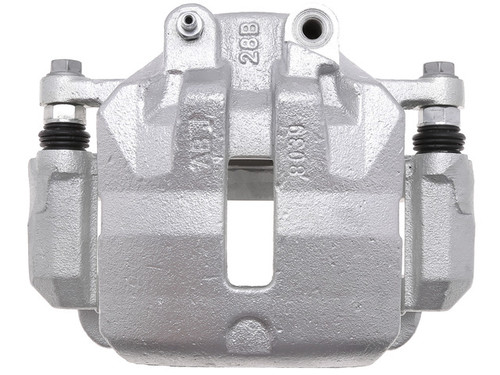

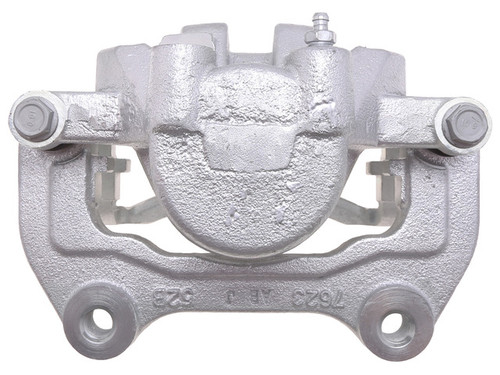

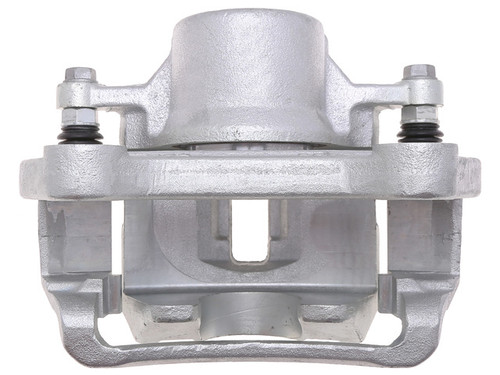

Give the front right brake a fresh start with the Raybestos Element3 Brake Caliper FRC12282N, a new semi-loaded caliper and bracket assembly engineered to meet OE performance. It is a direct-fit replacement for several models, among them the 2010-2017 Chevrolet Equinox, 2013-2015 Chevrolet Malibu and 2014-2020 Chevrolet Impala. See the Buyer's Guide tab for the full list.
The Element3 line is precision engineered for OE performance and durability, and it covers many popular applications, including those with high replacement rates. As a floating disc brake caliper, it uses hydraulic pressure to push its piston against the brake pads while the caliper body slides, so both pads clamp the rotor.
Specifications: The caliper is a floating type with a 2.358 in (59.9 mm) piston diameter and an M10x1 bleeder screw thread. The bracket mounting holes are 14 mm with a 2.0 mm thread pitch. Country of origin: China.
This listing is for one front right caliper, and each listed application uses one in this position. Replacing both front calipers together is recommended for even, balanced braking. Signs a caliper may need replacing include pulling to one side, a dragging brake, uneven pad wear, or fluid seeping at the caliper.
Interchange: 99-17427B · 18-B5271 · 18-B5275 · 18-P5271 · 18-P5271A · 18-P5274 · 141.62191 · 141.62217 · 142.62217 · 10-14473 · 10-4473S
9917427B · 18B5271 · 18B5275 · 18P5271 · 18P5271A · 18P5274 · 14162191 · 14162217 · 14262217 · 1014473 · 104473S · SC1098 · SC3124
This part cross-references / interchanges with the following part numbers:
Is this the right Chevy Malibu brake caliper for my car?
FRC12282N is listed as the front right caliper for the 2013-2015 Chevrolet Malibu. Check the Buyer's Guide tab to confirm it fits your vehicle.
Does this caliper fit the Chevrolet Equinox and Impala?
Yes. It is listed for the front right position on the 2010-2017 Chevrolet Equinox and the 2014-2020 Chevrolet Impala. The Buyer's Guide tab shows every listed vehicle.
What does this brake caliper do?
Hydraulic pressure pushes the caliper's piston against the brake pads. Because it is a floating caliper, the body slides so that both pads clamp the rotor to slow the wheel.
What are the key specs of FRC12282N?
It is a floating caliper with a cast iron casting, a 2.358 in (59.9 mm) piston diameter and an M10x1 bleeder screw thread. The bracket mounting holes are 14 mm with a 2.0 mm thread pitch.
What signs mean a caliper may need replacing?
Common signs are pulling to one side, a dragging or sticking brake, uneven pad wear, or fluid leaking at the caliper. Diagnose the cause first, because hoses, pads or rotors can also be involved.
