Raybestos Brakes Disc Brake Pad Set MGD1912CH
Raybestos Brakes Disc Brake Pad Set MGD1912CH

Front Brake Pad for 2017-2020 Hyundai Elantra & More - Raybestos MGD1912CH

Be the first to review this product
$38.99
MPN: MGD1912CH
UPC: 887213231533
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Pad Set P/N:MGD1912CH
Raybestos Brakes Disc Brake Pad Set P/N:MGD1912CH
$38.99

Raybestos Brakes MGD1912CH front brake pad for the 2017-2020 Hyundai Elantra and other vehicles is a ceramic disc brake pad set that presses against the rotor to slow the car.

  • R-Line series: broad coverage for cars, vans, SUVs and light trucks, with reliable stopping power for everyday braking
  • Ceramic friction material consistent with OE fit, form and function
  • Multi-layered steel shims for noise damping
  • Slots and chamfers match the OE design, for less noise, vibration and harshness

Squealing, grinding, longer stops or a pulsing pedal can mean worn pads. A scored rotor or a sticking caliper can bring on similar symptoms, so during a wheel-off brake service, look at the rotor surface and caliper before you decide the pads are the cause. The front axle takes one set.

It is a direct-fit replacement for the 2017-2020 Hyundai Elantra, and it also fits the 2017-2022 Hyundai Ioniq and the 2017-2022 Kia Niro.

Specifications

Fit and size

  • Position: front
  • Quantity per application: 1
  • Pad height: 2.350 in (inner and outer)
  • Pad width: 5.220 in (inner and outer)
  • Pad overall thickness: 0.665 in (inner and outer)

Build and materials

  • Friction material: ceramic
  • Country of origin: China

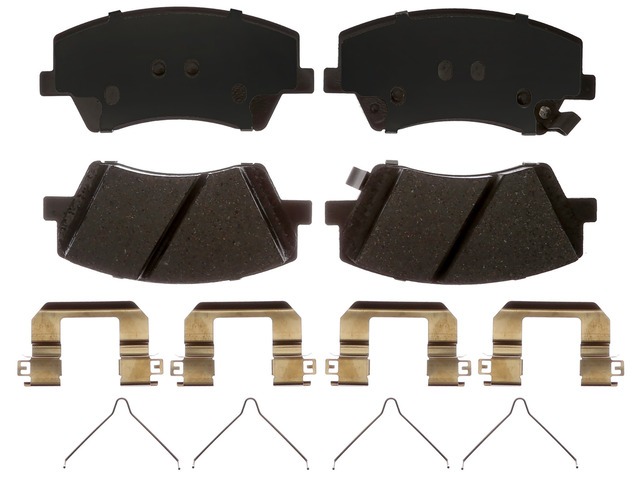

In the box: the front brake pad set and mounting hardware.

Interchange / FMSI:

FMSI: D1912

Interchange: 103.19120 · 105.19120 · 301.19120 · 17-1912 · ALD1912C · GNAD1912 · NAD1912 · PXD1912H · SC1912 · P30107 · P30107N · 58101F0A00 · 58101F2A00 · 58101F3A00 · 58101G2A00 · OEX1912 · QC1912 · ZD1912

This part cross-references / interchanges with the following part numbers:

ALD1912C, GNAD1912, NAD1912, PXD1912H, D1912, SC1912, P30107, P30107N, 103.19120, 105.19120, 301.19120, 58101F0A00, 58101F2A00, 58101F3A00, 58101G2A00, 17-1912, OEX1912, QC1912, ZD1912

Frequently Asked Questions

Do these work as 2017 Hyundai Elantra brake pads or 2019 Hyundai Elantra brake pads?

Yes. Raybestos Brakes MGD1912CH front pads fit the 2017-2020 Hyundai Elantra, so both the 2017 and 2019 model years are covered.

Is this Hyundai Elantra brake pad for the 2017-2020 model also usable as Kia Niro brake pads on the 2017-2022 Kia Niro?

Yes. This front pad set also fits the 2017-2022 Kia Niro and the 2017-2022 Hyundai Ioniq.

Do the Raybestos R-Line MGD1912CH pads come with mounting hardware?

Yes. Raybestos Brakes MGD1912CH includes mounting hardware with the front brake pad set.

Are these Raybestos R-Line pads ceramic, and how thick are they?

Yes, the friction material is ceramic. Each pad is 0.665 in thick, 5.220 in wide and 2.350 in tall, inner and outer alike.

What do the shims and slots on these R-Line brake pads do?

The multi-layered steel shims are there for noise damping. The slots and chamfers match the OE design for less noise, vibration and harshness.
