Raybestos Brakes Disc Brake Rotor and Hub Assembly P/N:66672R
$51.99
(You save)

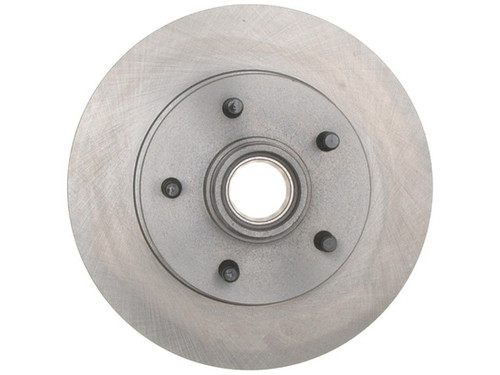

Get dependable front braking with a combined rotor and wheel-mounting hub in one unit — the Raybestos R-Line Disc Brake Rotor and Hub Assembly 66672R. Part of the R-Line series built for everyday driving, it installs as a direct-fit front replacement for the 1998-2001 Ford Ranger, 1998-2001 Mazda B2500, and 1998-2000 Mazda B3000 and B4000 (All engines). The rotor provides the friction surface for the brake pads while the integral hub locates the wheel, so a worn or scored original can be swapped as a single assembly.
Application-specific R-Line design: engineered for everyday driving conditions.
Mounting: 5 stud/lug holes on a 4.5 in (114.3 mm) bolt circle; 5 mounting bolt holes at 0.54 in (13.7 mm).
Thickness: nominal 1.025 in (26.05 mm) with a discard/minimum machine limit of 0.965 in (24.5 mm); overall height 4.252 in (108 mm).
ABS tone ring: not included.
Sold individually; the listed applications use a quantity of two, so order 2 and replace both sides together as a matched pair for even, balanced braking. Country of origin: China. Manufacturer part number 66672R.
Frequently Asked Questions
Which vehicles does the 66672R fit?
It's a direct-fit front replacement for the 1998-2001 Ford Ranger, 1998-2001 Mazda B2500, and 1998-2000 Mazda B3000 and B4000 (All engines). See the Buyer's Guide tab to confirm your vehicle.
Is this a front assembly?
Yes. The catalog lists this as a front disc brake rotor and hub assembly for the listed applications.
Does it include an ABS tone ring?
No. This assembly does not include an ABS tone ring; transfer or source that component separately as directed by the service procedure.
How many do I need?
The listed applications use a quantity of two. It's sold individually, so order 2 and replace both sides together as a matched pair for even, balanced braking.
What is the discard thickness?
Nominal thickness is 1.025 in (26.05 mm) and the discard/minimum machine limit is 0.965 in (24.5 mm). It mounts on 5 studs over a 4.5 in (114.3 mm) bolt circle.
