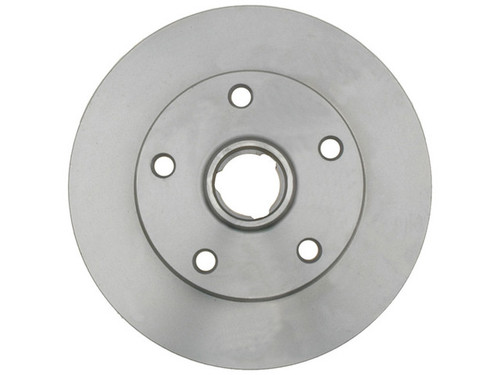

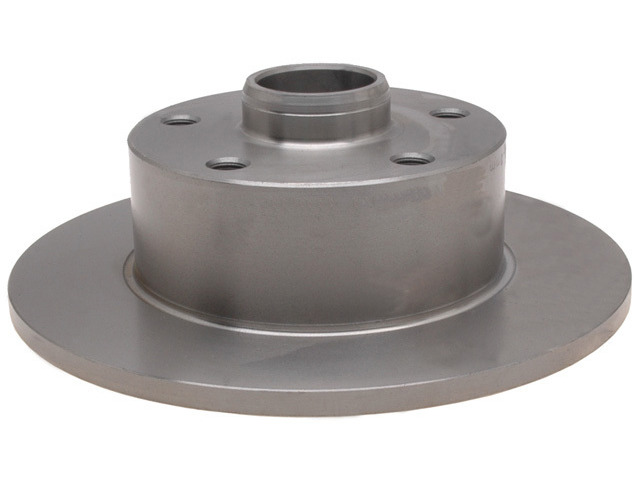

Raybestos Brakes Disc Brake Rotor and Hub Assembly P/N:96863R
$34.99
(You save)
Bring dependable rear-axle stopping back to your Audi with the Raybestos R-Line Disc Brake Rotor and Hub Assembly (P/N 96863R). This combined rear rotor and hub drops in as a direct-fit replacement for the 1996-2001 Audi A4 and 1996-2001 Audi A4 Quattro (all engines), integrating the braking friction surface with the rear wheel hub in a single unit.
Everyday-driving design: part of the Raybestos R-Line, built for daily driving conditions with an application-specific fit.
Rear rotor-and-hub combination: the disc gives the brake pads their friction surface while the hub locates and carries the rear wheel.
ABS tone ring not included: no tone ring is supplied — transfer or replace the original as directed by the service procedure.
Key specs: 5 stud/lug holes, 5 mounting bolt holes on a 112 mm (4.409 in) bolt circle, 10 mm (0.394 in) nominal thickness, 8 mm (0.315 in) discard thickness, and 83.6 mm (3.291 in) overall height.
Over time a rotor can develop grooves, scoring, or thickness variation that leads to vibration or pulsation under braking; if the rear rotor is the cause, this assembly replaces it. The listed applications use two per axle; sold individually — for even, balanced braking, replace both rear sides together as a matched pair. Country of origin: China. Manufacturer part number 96863R.
Frequently Asked Questions
Where is this rotor located on the vehicle?
It is a rear disc brake rotor and hub assembly for the listed Audi A4 and A4 Quattro applications.
Does it include an ABS tone ring?
No. Per the catalog, an ABS tone ring is not included; transfer or replace the original as directed by the service procedure.
How many do I need?
The listed applications use two per axle. It is sold individually, so order two and replace both rear sides together as a matched pair for even, balanced braking.
What vehicles does it fit?
It is a direct-fit replacement for the 1996-2001 Audi A4 and 1996-2001 Audi A4 Quattro (all engines). Check the Buyer's Guide tab to confirm your vehicle.
What is the discard thickness?
The discard thickness is 8 mm (0.315 in), from a nominal 10 mm (0.394 in). Replace the rotor once it wears down to that limit.
