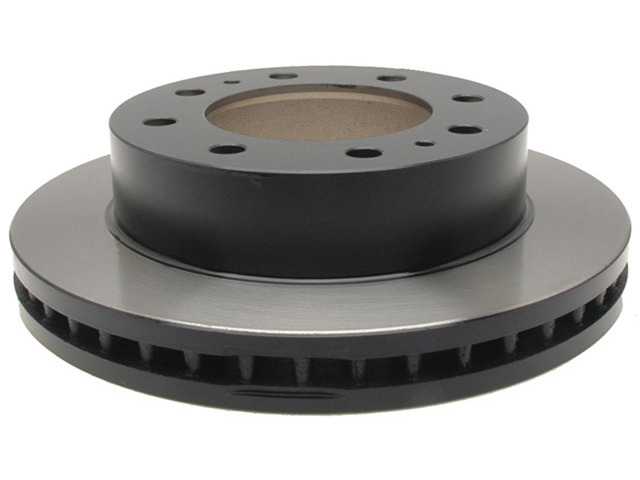

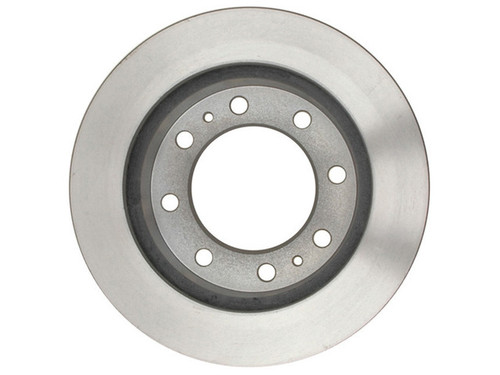

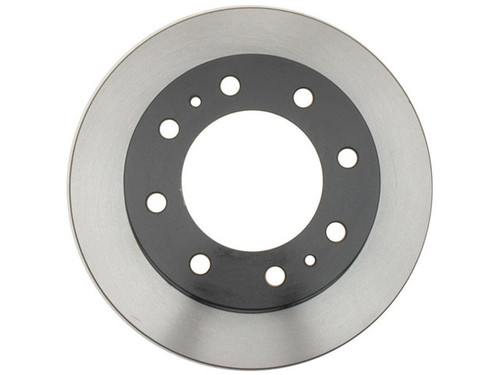

Quiet, confident heavy-duty stopping starts with the Raybestos Specialty Truck Disc Brake Rotor 580000. It drops in as a front direct-fit replacement for the listed applications, including the 2002-2004 Chevrolet Avalanche 2500, 2001-2010 Chevrolet Silverado 2500 HD, 2004-2007 Chevrolet Silverado 3500, 2003-2025 Chevrolet Express 3500, 2001-2010 GMC Sierra 2500 HD, and 2003-2025 GMC Savana 3500 — see the Buyer's Guide tab for the full list of covered trucks and vans.
Vented, non-directional design: cooling vanes matched to OE designs help manage heat; the non-directional face installs on either side.
Full-cast iron construction: follows SAE standards for tensile strength, hardness, and iron grade for structural integrity.
Rust-protective coating: the rotor is coated to protect against the elements.
Turned smooth finish: gives the pads a ready surface to engage for a smooth stop out of the box.
Specs: 12.795 in (325 mm) outside diameter, 8 stud/lug holes, 4.65 in (118.1 mm) center hole, 1.5 in (38.1 mm) nominal thickness, 1.437 in (36.5 mm) discard thickness. Bearings and an ABS tone ring are not included. Sold individually; replacing both front rotors as a matched pair is recommended for even, balanced braking. Country of origin: China. Manufacturer part number 580000.
Frequently Asked Questions
Which vehicles does rotor 580000 fit?
It's a front direct-fit for the listed HD Chevrolet and GMC trucks and vans, including Silverado 2500 HD, Silverado 3500, Express 3500, Sierra 2500 HD, and Savana 3500. See the Buyer's Guide tab for the full list.
Is this a front or rear rotor?
The catalog lists this as a front rotor for the covered applications.
Is this a vented rotor?
Yes. It's a vented, conventional rotor with cooling vanes matched to OE designs to help manage heat.
Are wheel bearings or an ABS tone ring included?
No. Bearings are not included and no ABS tone ring is included, so transfer or source those separately as the service procedure directs.
How many rotors should I order?
It's sold individually — this listing is for one. Replacing both front rotors together as a matched pair is recommended for even, balanced braking, so order 2 for a full front-axle job.
