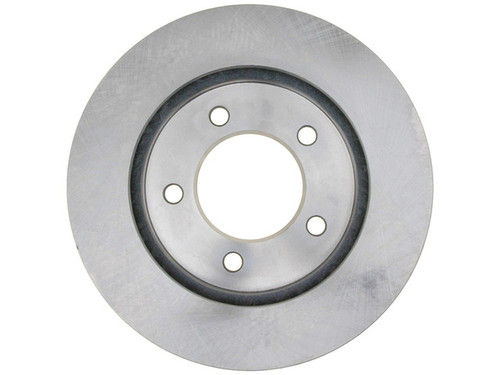

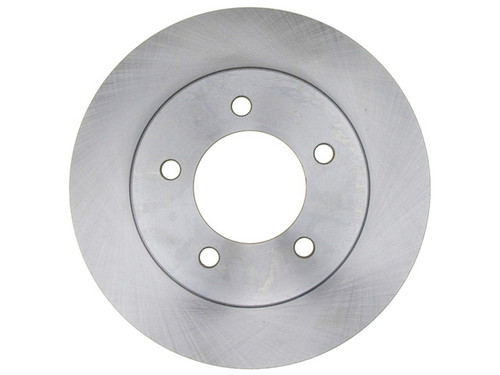

Raybestos Brakes Disc Brake Rotor P/N:66647R

Help keep stops smooth and steady with the Raybestos R-Line front brake rotor 66647R, a direct-fit Ford Expedition brake rotor for 1997-2000 models (all engines) that also fits the 1998-2002 Lincoln Navigator (all engines). Built for everyday driving, this vented disc brake rotor gives the front brake pads a friction surface to clamp against, turning pedal pressure into stopping force.

• OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
• SAE standard: R-Line rotors meet the SAE standard for tensile strength, supporting structural integrity.
• Low initial lateral runout and thickness variation: Tight runout and thickness variation are designed to help reduce pedal pulsation and brake noise and to extend pad life.
• Mill balanced edges: R-Line rotors are mill balanced and 100 percent validated, which helps minimize thickness variation for less vibration and smoother stopping.

Specifications: The rotor is cast iron with a vented, conventional design (not drum-in-hat) and a non-directional braking surface. It has a 12.12 in (307.85 mm) outside diameter, a 1.185 in (30.1 mm) nominal thickness and a 1.091 in (27.7 mm) discard thickness. Overall height is 1.86 in (47.25 mm) and the center hole is 3.64 in (92.45 mm). There are five 0.588 in (14.95 mm) mounting bolt holes on a 5.315 in (135 mm) bolt circle. The ABS tone ring is not included. Country of origin: China.

The listed applications use two rotors on the front axle. This listing is for one rotor, sold individually. Replacing both sides together as a matched pair is recommended for even, balanced braking.
