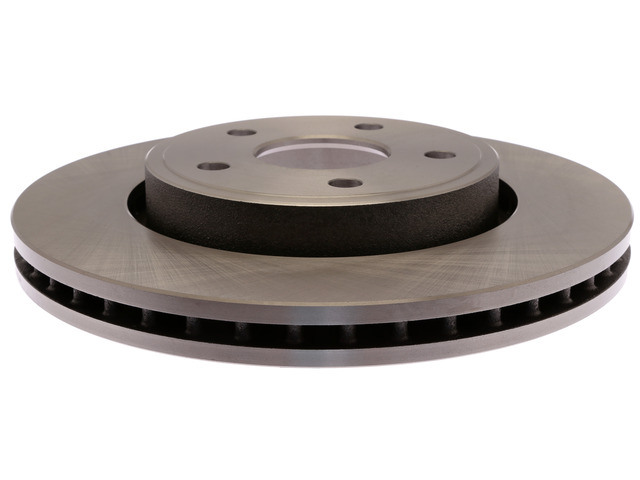

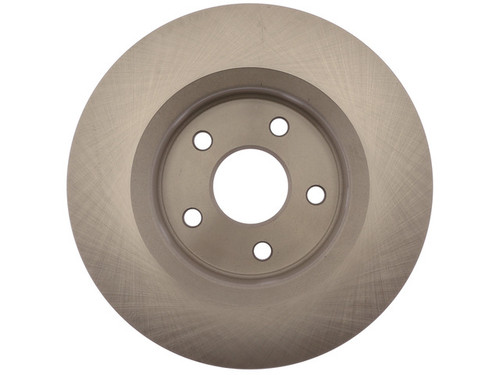

Give your front brakes a fresh braking surface with the Raybestos R-Line Brake Rotor 780289R. It is a direct-fit front replacement for 2005-2010 Jeep Grand Cherokee rotors, and it also fits the 2006-2010 Jeep Commander with all engines.
Raybestos engineers its R-Line rotors and drums for everyday driving conditions. This cast iron disc brake rotor was developed from OE samples and is made with G3000-qualified material for OE fit, form and function.
Specifications: The rotor is vented and conventional (not drum-in-hat), with a non-directional braking surface. It has a 12.915 in (328.05 mm) outside diameter and a 1.181 in (30 mm) nominal thickness. The discard thickness is 1.122 in (28.5 mm). Overall height is 2.085 in (52.95 mm), and the center hole is 2.84 in (72.15 mm). Five 0.64 in (16.25 mm) mounting bolt holes sit on a 5 in (127 mm) bolt circle. An ABS tone ring is not included. Country of origin: China.
The listed applications use two rotors on the front axle. This rotor is sold individually, and this listing is for one. We recommend replacing both sides together as a matched pair for even, balanced braking.
What does a front brake rotor do?
The rotor turns with the wheel hub. The brake pads clamp against its faces, creating friction that slows the vehicle. This vented rotor has internal air passages that help shed heat.
Does this rotor fit both the 2005-2010 Jeep Grand Cherokee and the 2006-2010 Jeep Commander?
Yes. It is listed as a front rotor for the 2005-2010 Jeep Grand Cherokee and the 2006-2010 Jeep Commander with all engines. Check the Buyer's Guide tab to confirm your vehicle.
Should I replace both front rotors at the same time?
These vehicles use two front rotors, and this listing is for one. We recommend replacing both sides together as a matched pair for even, balanced braking.
What are the key measurements of Raybestos 780289R?
It has a 12.915 in (328.05 mm) outside diameter, a 1.181 in (30 mm) nominal thickness and a 1.122 in (28.5 mm) discard thickness. Its five bolt holes sit on a 5 in (127 mm) circle.
What are signs a brake rotor may need replacing?
Common signs include pedal pulsation, vibration or noise when braking, and deep grooves or scoring. A rotor worn to or below its 1.122 in (28.5 mm) discard thickness also needs replacing.
