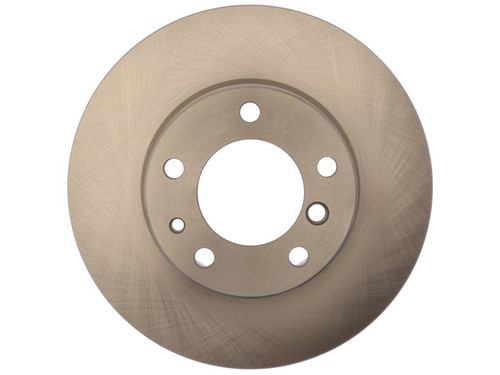

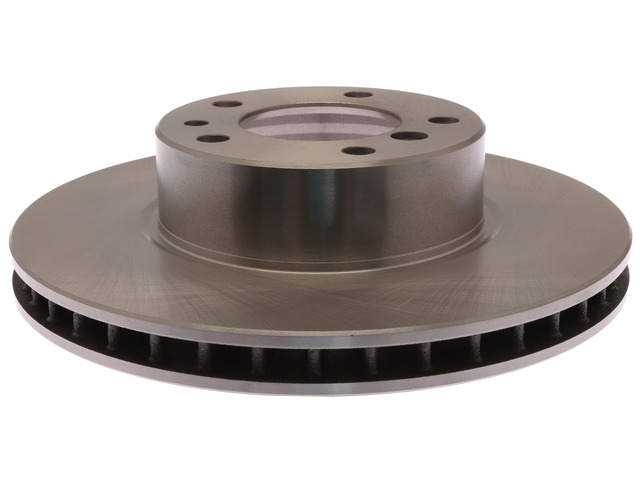

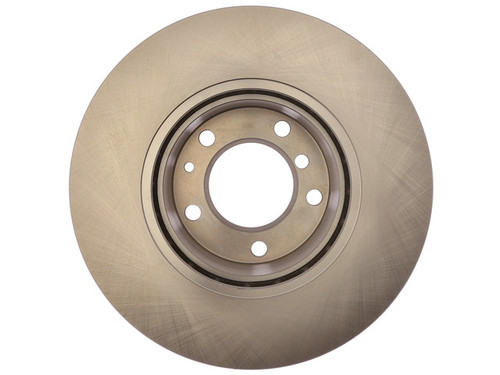

Bring smooth, confident stops back to your BMW with the Raybestos R-Line Disc Brake Rotor 96329R, a front-axle conventional vented rotor engineered for everyday driving. It installs as a direct-fit, OE fit-form-and-function replacement on the 1987-1992 BMW 735I [All], 1987 BMW L7 [All], 1988-1992 BMW 735IL [All], 1988-1994 BMW 750IL [All], 1993-1994 BMW 740I [All], 1993-1994 BMW 740IL [All], and 1994-1995 BMW 540I [All].
- OE Fit, Form, and Function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE tensile-strength standard: meets the SAE standard for tensile strength for structural integrity and a maximum service life.
- Low lateral runout & thickness variation: a small lateral runout and thickness variation help reduce pedal pulsation and brake noise and support extended pad life.
- Mill-balanced & 100% validated: mill-balanced edges and full validation help minimize thickness variation for less vibration and smoother stops.
Specs: 11.88 in (301.75 mm) outside diameter, 5 lug holes on a 120 mm bolt circle, 3.113 in (79.05 mm) center hole, 1.1 in (27.95 mm) nominal thickness, and a 1.039 in (26.4 mm) discard thickness. The ABS tone ring is not included. Sold individually; the listed front applications use two, so replace both sides together as a matched pair for balanced braking. Manufacturer part number 96329R. Country of origin: China.
Frequently Asked Questions
Does this rotor fit my BMW?
It's a front-axle fit for the listed BMW models (735I, 735IL, 740I, 740IL, 750IL, 540I, L7) across 1987-1995 with [All] engines—check the Buyer's Guide tab for your exact year.
How many rotors do I need?
Sold individually. The listed front applications use two rotors, so order two and replace both sides together as a matched pair for even, balanced braking.
Is an ABS tone ring included?
No. The ABS tone ring is not included with this rotor; transfer or replace the correct component as directed by the vehicle service procedure.
What are the key dimensions?
Outside diameter 11.88 in (301.75 mm), 5 lug holes on a 120 mm bolt circle, 3.113 in (79.05 mm) center hole, 1.1 in (27.95 mm) nominal thickness, and 1.039 in (26.4 mm) discard thickness.
Where is this rotor made?
Country of origin: China. It's a conventional vented rotor developed from OE samples with G3000-qualified material that meets the SAE standard for tensile strength.
