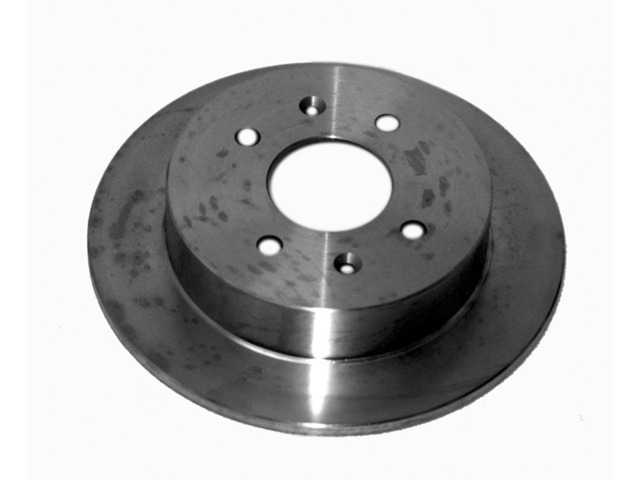

Smooth out your rear braking and quiet the pedal with the Raybestos R-Line Disc Brake Rotor 96544R, a rear vented cast-iron rotor engineered for everyday driving. It installs as a direct-fit replacement on the listed applications — the 1992-1995 and 1999-2000 Honda Civic, the 1993-1997 Honda Civic del Sol, and the 1995-2001 Acura Integra (engine: All).
- OE Fit, Form and Function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE tensile strength: meets the SAE standard for tensile strength for structural integrity and a maximum service life.
- Low lateral runout & thickness variation: small runout and thickness variation help deliver less pedal pulsation, less brake noise, and extended pad life.
- Mill-balanced edges: mill balanced and 100 percent validated to minimize thickness variation for reduced vibration and smoother stopping.
This vented rotor measures 9.4 in (238.75 mm) outside diameter with a 60.95 mm center hole, 4 lug holes, a 9 mm nominal thickness, and an 8 mm discard thickness. The non-directional braking surface lets it mount on either side. Sold individually — this listing is for one rotor; replacing both rear rotors together as a matched set is recommended for even, balanced braking. If worn or warped rear rotors are causing your pulsation or vibration, this replaces them. Country of origin: China. Manufacturer part number 96544R.
Frequently Asked Questions
What vehicles does the 96544R rotor fit?
It fits the 1992-1995 and 1999-2000 Honda Civic, the 1993-1997 Honda Civic del Sol, and the 1995-2001 Acura Integra. See the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
It is cataloged as a rear disc brake rotor for the listed Acura and Honda applications.
How many rotors do I need?
It is sold individually, so this listing is for one rotor. Replacing both rear rotors together as a matched pair is recommended for even, balanced braking.
Is the 96544R vented or solid?
It is a vented cast-iron rotor with internal cooling vanes and a non-directional braking surface, so it can mount on either side.
What are the rotor's thickness specs?
It has a 9 mm (0.355 in) nominal thickness and an 8 mm (0.315 in) discard thickness. Consult the vehicle service information for measuring and replacement guidance.
