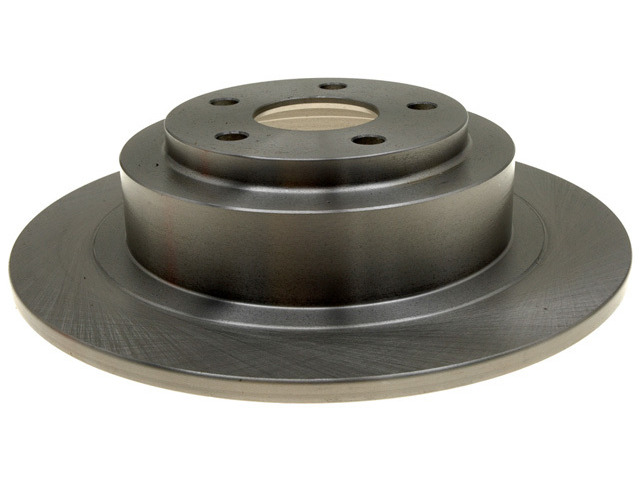

Get your Subaru's rear brakes back to smooth, quiet operation with the Raybestos R-Line Disc Brake Rotor 96937R — a direct-fit Subaru Outback brake rotor that also drops onto the 2003-2006 Subaru Baja and 2000-2004 Subaru Legacy. This rear, vented cast iron rotor is developed from OE samples and made with G3000-qualified material for dependable OE fit, form, and function. Its drum-in-hat design houses an integrated parking-brake drum, and the non-directional braking surface lets it mount on either side of the axle.
Specifications: 11.4 in (289.55 mm) outside diameter, 2.29 in (58.15 mm) center hole, 5 lug holes and 5 mounting bolt holes on a 3.93 in (99.8 mm) bolt circle, 0.394 in (10 mm) nominal thickness, 0.335 in (8.5 mm) discard thickness. It also serves as a Subaru Legacy brake rotor for 2000-2004 models. This rotor does not include an ABS tone ring. Country of origin: China. Sold individually; the rear axle uses two, so order two Subaru Outback rotors and replace both sides as a matched set for even, balanced braking.
Does this rotor fit my Subaru Outback?
Yes, it's a direct-fit rear rotor for the 2000-2004 Subaru Outback, plus the 2003-2006 Subaru Baja and 2000-2004 Subaru Legacy. Check the Buyer's Guide tab to confirm your exact year.
Is this a front or rear rotor?
This is a rear disc brake rotor. It uses a drum-in-hat design, with an integrated drum in the hat for the parking brake.
How many rotors do I need?
It's sold individually. The rear axle uses two, so order two and replace both sides as a matched set for even, balanced braking.
What about Subaru Outback brake pads and rotors?
This listing is for the rotor only; brake pads are not included. Inspect your pads and replace them as needed when installing new rotors.
Does it include an ABS tone ring?
No, this rotor does not include an ABS tone ring. Reuse or transfer components as directed by the vehicle service procedure.
