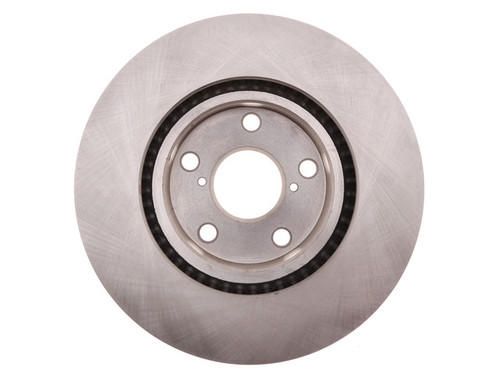

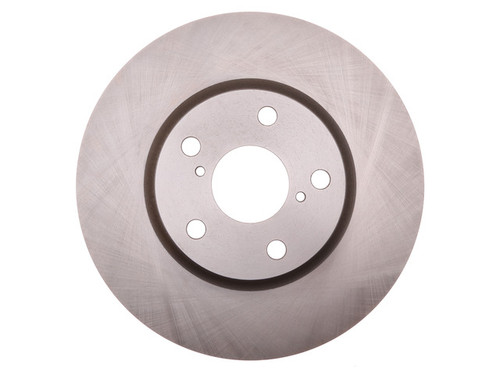

Built for everyday driving, the Raybestos R-Line Brake Rotor, part number 96976R, gives your brake pads a balanced, true surface to clamp against. It was developed from OE samples for OE fit, form and function. It fits many vehicles, among them the 2020 Dodge Grand Caravan, 2012-2013 Ram C/V and 2002-2010 Lexus SC430. See the "Vehicles it fits" section for the full list. Catalog position: front and rear left, depending on the application.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: R-Line rotors meet the SAE standard for tensile strength, which supports structural integrity.
- Low initial lateral runout and thickness variation: Held to a small lateral runout and thickness-variation parameter. This is designed to help reduce pedal pulsation and brake noise and to support longer pad life.
- Mill-balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation. That helps reduce vibration for smoother stops.
Specifications: 11.654 in (296 mm) outside diameter; 1.256 in (31.9 mm) nominal thickness; 1.181 in (30 mm) discard thickness; 1.98 in (50.3 mm) overall height; 2.441 in (62 mm) center hole; 7.146 in (181.5 mm) inside diameter; 5 lug holes on a 4.5 in (114.3 mm) bolt circle. Vented, conventional (not drum-in-hat) rotor. Country of origin: China.
Sold individually, so this listing is for one rotor. The quantity needed varies by application. Replacing both sides together as a matched pair is recommended for even, balanced braking.
Interchange: 120.44083
12044083 · YH145200 · 71909 · PRT6055 · 50011487 · 50011248 · 96976 · 96976RGS · BR31478 · BR901014 · 31478 · R1014 · 4351230180 · 4351230181 · 4351253020 · BD126221 · BD126221E · 6621340
This part cross-references / interchanges with the following part numbers:
YH145200, 71909, PRT6055, 50011487, 50011248, 96976, 96976R, 96976RGS, 120.44083, BR31478, BR901014, 31478, R1014, 4351230180, 4351230181, 4351253020, BD126221, BD126221E, 6621340
Frequently Asked Questions
Will these brake rotors fit a 2020 Dodge Grand Caravan?
Yes. Part 96976R is listed for the 2020 Dodge Grand Caravan with all engines, at one rotor per application. Check the "Vehicles it fits" section to confirm your exact vehicle.
What does a disc brake rotor do?
It is the disc your brake pads clamp against, and that friction slows the wheel. The 96976R is a vented, conventional-style rotor.
What is the discard thickness of the 96976R?
Nominal thickness is 1.256 in (31.9 mm) and discard thickness is 1.181 in (30 mm). A rotor worn to or below its discard thickness should be replaced.
Does this rotor come as a pair?
No. It is sold individually, so this listing is for one rotor. Replacing both sides together as a matched pair is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Common signs include pedal pulsation or vibration when braking, grinding or squealing noises, visible scoring or grooves, and a rotor worn to its discard thickness.
