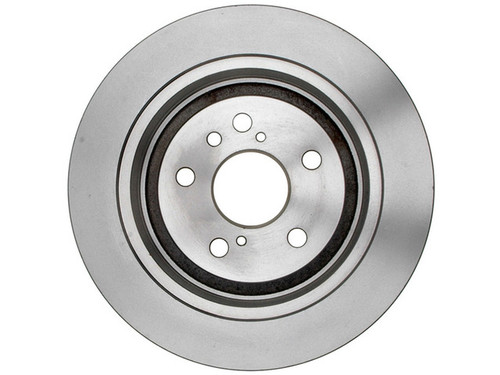

Bring dependable rear braking back to your 2004-2010 Toyota Sienna (all engines) with the Raybestos Specialty Disc Brake Rotor 980213. This solid, drum-in-hat rear rotor is engineered to match OE fit, form, and function, arriving with a turned finish that gives the pads a smooth surface to engage right out of the box.
- Cast iron construction: follows SAE standards for tensile strength, hardness, and iron grade for structural integrity and service life.
- Rust protection: fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray, or a Black Fusion painted hat and edge.
- Drum-in-hat design: the hat section forms the drum for the parking brake shoes; the non-directional braking surface installs on either side.
- Turned finish for a smooth, effective bed-in stop out of the box.
Specs: 11.455 in (290.95 mm) outside diameter, 5 mounting/lug holes on a 4.5 in (114.3 mm) bolt circle, 2.44 in (62 mm) center hole, 0.472 in (12 mm) nominal thickness, and a 0.413 in (10.5 mm) discard thickness. The ABS tone ring is not included. The listed Sienna application uses two rotors (one per side).
Interchange: Manufacturer part number 980213. Country of origin: China.
Frequently Asked Questions
Will this rotor fit my vehicle?
It's a direct-fit rear rotor engineered to match OE fit, form, and function for the 2004-2010 Toyota Sienna (all engines). Check the Buyer's Guide tab to confirm your vehicle.
Is this a solid or vented rotor?
It's a solid (non-vented) rotor with a drum-in-hat design, where the hat section serves as the drum for the parking brake shoes.
How many rotors do I need?
The listed Toyota Sienna application uses two rear rotors, one per side. This listing is for one; replacing both sides together as a matched pair is recommended for even, balanced braking.
Does it include an ABS tone ring?
No. The ABS tone ring is not included, so transfer your original or source one separately if your application requires it.
What coating does it have?
All new Specialty rotors come fully coated with Grey Fusion 4.0 rated at 300 hrs. salt spray, or with a Black Fusion painted hat and edge for rust protection.
