If you're shopping for 2005 Nissan Altima rotors, the Raybestos R-Line Brake Rotor 980225R is a front, direct-fit replacement for the 2005 Nissan Altima, 2004-2005 Nissan Maxima and 2003-2004 Nissan Murano, all engines. Raybestos engineers its R-Line rotors for everyday driving conditions, with a focus on dependability, safety and performance.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material, giving OE fit, form and function for dependable braking.
- SAE standard: R-Line rotors meet the SAE standard for tensile strength, which supports structural integrity.
- Low initial lateral runout and thickness variation: Tight runout and thickness-variation limits are designed to reduce pedal pulsation and brake noise and to help extend pad life.
- Mill balanced edges: Each rotor is mill balanced and 100 percent validated. This helps keep thickness variation low and is intended to minimize vibration for smoother stops.

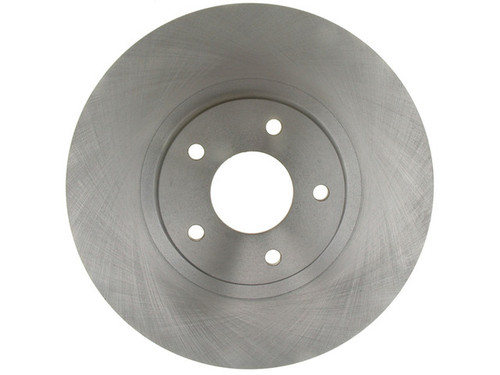

This is a vented, conventional cast iron rotor with a non-directional braking surface. It measures 12.6 in (320.05 mm) in outside diameter and 1.102 in (28 mm) in nominal thickness, with a discard thickness of 1.024 in (26 mm). Overall height is 1.935 in (49.15 mm) and the center hole is 2.68 in (68.05 mm). It has 5 mounting bolt holes, each 0.495 in (12.55 mm), on a 4.5 in (114.3 mm) bolt circle. An ABS tone ring is not included.
The listed applications use two rotors. This listing is for one rotor, and replacing both front rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Frequently Asked Questions
What does a disc brake rotor do?
It is the spinning disc that the brake pads clamp against. The friction slows the wheel. This vented R-Line rotor mounts on the front axle.
Will this rotor fit the 2005 Nissan Altima?
Yes. Part 980225R is listed as a front rotor for the 2005 Nissan Altima with all engines. Check the "Vehicles it fits" section to confirm it matches your vehicle.
Is this also a 2004-2005 Nissan Maxima brake rotor?
Yes. It is listed for the front of the 2004-2005 Nissan Maxima with all engines. See the "Vehicles it fits" section for the full fitment chart.
What comes in the box?
One cast iron rotor. Brake pads and an ABS tone ring are not included. The listed applications use two rotors, so replacing both front rotors together is recommended.
What are signs a rotor may need replacing?
Common signs are pulsation in the brake pedal, vibration when braking, deep scoring or grooves, and rotor thickness at or below the 1.024 in (26 mm) discard spec.
